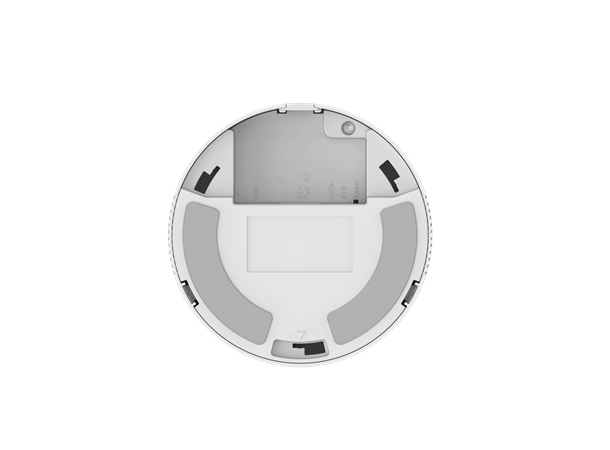

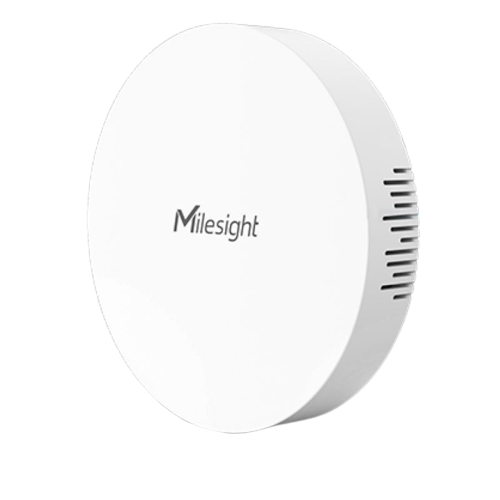

UG63 Mini LoRaWAN Gateway

https://harotechs.com/web/image/product.template/20/image_1920?unique=eeec15f
(0 review)

UG63 Mini LoRaWAN Gateway is an 8-channel lightweight indoor LoRaWAN® gateway. Adopting the SX1302 LoRa chip and high-performance CPU, UG63 supports connection with more than 2000 nodes and can cover 15 km in sight and about 2 km in an urbanized environment. With its compact size, it is ideally suited for offices, parking lots, campuses, hotels, exhibition centers, and many other indoor areas. It also applies to provide coverage for indoor blind spots.

US$ 136.00 136.0 USD US$ 136.00 US$ 250.00

US$ 136.00 US$ 250.00

Not Available For Sale

  • Brand
  • Frequency Band
  • Antenna
  • Communication

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Indoor LoRaWAN Gateway with PoE

UG63 is an 8-channel lightweight indoor LoRaWAN® gateway. Adopting the SX1302 LoRa chip and high-performance CPU, UG63 supports connection with more than 20 nodes and can cover 15 km in sight and about 2 km in an urbanised environment. With its compact size, it is ideally suited for offices, parking lots, campuses, hotels, exhibition centers, and many other indoor areas. It also ap lies to provide coverage for indoor blind spots.

UG63 has both integrated mainstream network servers (such as TTN, ChirpStack, etc.), and a built-in network server, and it is compatible with Milesight IoT Cloud and other 3rd part clouds for easy deployment.


Features

  • High performance NXP industrial processor with big memory
  • Equip with SX1302 chip, handling a higher amount of traffic with lower consumption
  • 8 half/full-duplex channels
  • Support worldwide LoRaWAN ® frequency range from 470 MHz to 928 MHz
  • Support Listen Before Talk (LBT) for downlink
  • Desktop, wall or ceiling mounting support
  • DeviceHub and Milesight IoT Cloud provide easy and centralized management of  remote devices
  • Enable security communication with multiple VPNs like IPsec/OpenVPN /L2TP/PPTP/DMVPN
  • Compatible with mainstream network servers like The Things Industries,  ChirpStack, etc.
  • Detect and analyze the noise level and provide intuitive diagram for deployment
  • Built-in network server and MQTT/HTTP/HTTPS API for easily integration

OTHER FEATURES

  • 8-CH
  • Wi-Fi / PoE PD
  • 1 * 10/100/1000Mbps
  • IP30 rated

Mini yet Powerful


Watch as a living game world comes alive all around you, with a seamless field of view wherever you look.
Hardware SystemCPU528 MHz, ARM Cortex-A7
Memory256 MB DDR4 RAM
Flash4 GB eMMC
LoRaWANAntenna2 × Internal Antennas
Channel8 (Half/Full-duplex)
Frequency BandCN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Sensitivity-140dBm Sensitivity @292bps
Output Power27dBm Max
ProtocolV1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
LBTSupport
Ethernet InterfacePort1 × RJ45 (PoE PD supported)
Physical Layer10/100 Base-T (IEEE 802.3)
Data Rate10/100 Mbps (Auto-Sensing)
InterfaceAuto MDI/MDIX
ModeFull or Half Duplex (Auto-Sensing)
OthersReset Button1 × RST
Console Port1 × Type-C
LED Indicators1 × SYS, 1 × LoRa
Built-inWatchdog, RTC, Timer
SoftwareNetwork ProtocolsPPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
VPN TunnelOpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
ManagementWeb, CLI, DeviceHub, Milesight IoT Cloud, Yeastar Workplace Platform
Power SupplyPower Input1. 1 × 802.3af standard PoE input 2. 5V by Type-C Port
Physical CharacteristicsIngress ProtectionIP30
DimensionsФ 115 x 21 mm (Ф 4.52 x 0.83 in)
Color & MaterialWhite, PC + ABS
InstallationDesktop, Wall or Ceiling Mounting
EnvironmentalOperating Temperature-20°C to +50°C (-4℉ to +122℉)
Storage Temperature-40°C to +85°C (-40℉ to +185℉)
Ethernet Isolation1.5 kV RMS
Relative Humidity0% to 95% (non-condensing) at 25°C/77℉


UG63 LoRaWAN Gateway Datasheet

UG63 LoRaWAN Gateway User Guide


Separate email addresses with a comma.
Submit

Specifications

Antenna Build in Antenna or External Antenna
Communication Wi-Fi or POE+Wi-Fi or 4G
Brand Milesight
Frequency Band AS923
