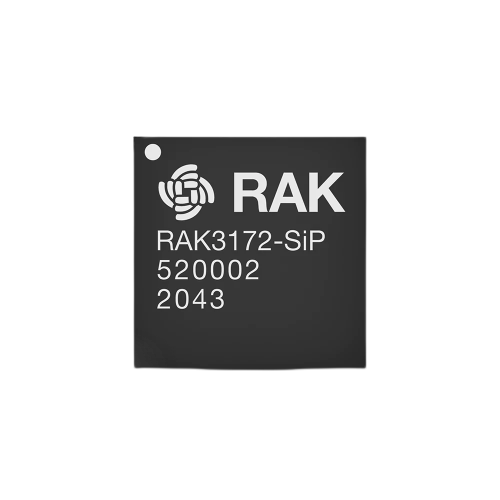

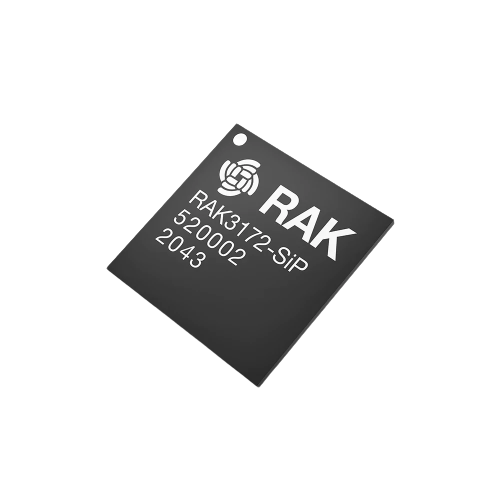

RAK3172-SiP Module for LoRaWAN

https://harotechs.com/web/image/product.template/74/image_1920?unique=08a8adb
(0 review)

RAK3172-SiP is a low-power long range transceiver system in a package (SiP) that is based on STM32WLE5CC chip. It provides an easy to use, small size, low-power solution for long range wireless data applications. This module complies with Class A, B & C of LoRaWAN 1.0.3 specifications.

US$ 6.40 6.4 USD US$ 6.40

US$ 6.40

Not Available For Sale

(US$ 0.01 / Units)
  • Brand
  • Frequency Band

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

LoRaWAN Module

RAK3172-SiP is a low-power long range transceiver system in a package (SiP) that is based on STM32WLE5CC chip. It provides an easy to use, small size, low-power solution for long range wireless data applications. This module complies with Class A, B & C of LoRaWAN 1.0.3 specifications. It can easily connect to different LoRaWAN server platforms like TheThingsNetwork (TTN), Chirpstack, Actility, etc. It also supports LoRa Point-to-Point (P2P) communication mode which helps you in implementing your own customized long-range LoRa network quickly.
You can configure the mode and operation of the module using AT commands via a UART interface. RAK3172 also offers low power features which is very suitable for battery-powered applications. It is RUI3 compatible which allows you to create custom firmware using RUI3 APIs.

Features



  • Based on STM32WLE5
  • System-in-Package form factor
  • RUI3 API compatible
  • LoRaWAN 1.0.3 specification compliant
  • Supported bands: IN865, EU868, AU915, US915, KR920, RU864, and AS923
  • LoRaWAN Activation by OTAA/ABP
  • LoRa Point-to-Point (P2P) communication
  • Easy to use AT Command Set via UART interface
  • Long-range - up to 15 km with optimized antenna
  • Use TCXO for better frequency stability
  • ARM Cortex-M4 32-bit
  • 256 kbytes flash memory with ECC
  • 64 kbytes RAM
  • Ultra-Low Power Consumption of 1.69 μA in sleep mode
  • Supply Voltage: 2.0 V ~ 3.6 V
  • Temperature Range: -40° C ~ 85° C
  • Size: 12mm x 12mm x 1.22mm
  • Package: LGA73 type




Rak3172-SiP Datasheet

Rak3172-SiP Start User Guide

Reference Design




Separate email addresses with a comma.
Submit


Specifications

Brand Rakwireless
Frequency Band AS923
