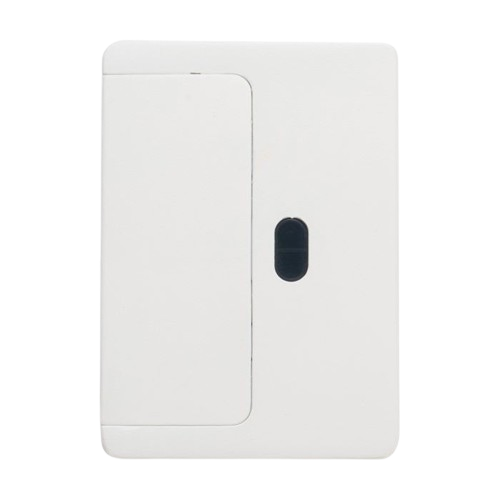

LoRaWAN Smart Distance Detector

https://harotechs.com/web/image/product.template/350/image_1920?unique=a0a520b
(0 review)

The Dragino DS20L is a smart distance detector base on long-range wireless LoRaWAN technology. It uses LiDAR sensor to detect the distance between DS20L and object, then DS20L will send the distance data to the IoT Platform via LoRaWAN. DS20L can measure range between 3cm ~ 200cm.

US$ 62.00 62.0 USD US$ 62.00

US$ 62.00

Not Available For Sale

  • Brand
  • Network Connection
  • Frequency Band
  • Sensor
  • Power type
  • Configure
  • Measurement Range

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

LoRaWAN LiDAR ToF Distance Sensor



The Dragino DS20L is a smart distance detector base on long-range wireless LoRaWAN technology. It uses LiDAR sensor to detect the distance between DS20L and object, then DS20L will send the distance data to the IoT Platform via LoRaWAN. DS20L can measure range between 3cm ~ 200cm.

DS20L allows users to send data and reach extremely long ranges via LoRaWAN. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. It targets professional wireless sensor network applications such smart cities, building automation, and so on.

DS20L has a built-in 2400mAh non-chargeable battery for long-term use up to several years*. Users can also power DS20L with an external power source for continuous measuring and distance alarm / counting purposes.

DS20L is fully compatible with LoRaWAN v1.0.3 Class A protocol, it can work with a standard LoRaWAN gateway.

Features


  • LoRaWAN Class A protocol
  • LiDAR distance detector, range 3 ~ 200cm
  • Periodically detect or continuously detect mode
  • AT Commands to change parameters
  • Remotely configure parameters via LoRaWAN Downlink
  • Alarm & Counting mode
  • Firmware upgradable via program port or LoRa protocol
  • Built-in 2400mAh battery or power by external power source


Specification:

LiDAR Sensor:

  • Operation Temperature: -40 ~ 80 °C
  • Operation Humidity: 0~99.9%RH (no Dew)
  • Storage Temperature: -10 ~ 45°C
  • Measure Range: 3cm~200cm @ 90% reflectivity
  • Accuracy: ±2cm @ (3cm~100cm); ±5% @ (100~200cm)
  • ToF FoV: ±9°, Total 18°
  • Light source: VCSEL



Separate email addresses with a comma.
Submit


Specifications

Brand Dragino
Network Connection LoRaWAN
Frequency Band AS923
Sensor ToF Distance
Power type 2400mAh
Configure BLE
Measurement Range 3cm - 200cm
