LoRaWAN E-Ink Display

https://harotechs.com/web/image/product.template/190/image_1920?unique=208fd17
(0 review)

Going Paperless for More Efficient and Sustainable Operations

US$ 136.00 136.0 USD US$ 136.00

US$ 136.00

Not Available For Sale

  • Brand
  • Frequency Band
  • Display
  • Power type
  • Display feature

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

IoT E-ink Display

DS3604 is a reflective electrophoretic display offeringreadabilityand flexibility. The 4.2-inch active area contains 400x300pixelsand has 1-bit Black/White/Red full display capabilities. DS3604supports displaying up to 150 languages and other moduleslikepicture or QR code. Long-capacity batteries and ultra-lowpowerconsumption bring a long battery life of up to 5 years.

DS3604 enables quickly modifying the displayedcontentremotely and locally through simple operationsandallowsremote management in bulk. Moreover, DS3604 canbeinstalledin multiple methods and be compliant with standardLoRaWAN®gateways and networks for more integrated applications.

Features


  • 4.2-inch three-color e-ink screen
  • 400 × 300 pixels display with high contrast and ultra-wide viewing angle
  • Enables quickly modifying the displayed content including text, picture and QR code remotelyandlocally
  • Support multiple characters to display up to 150 languages
  • Support multicast feature for remote configurations in bulk
  • Provide API for management platform integration or development
  • Support display template customization

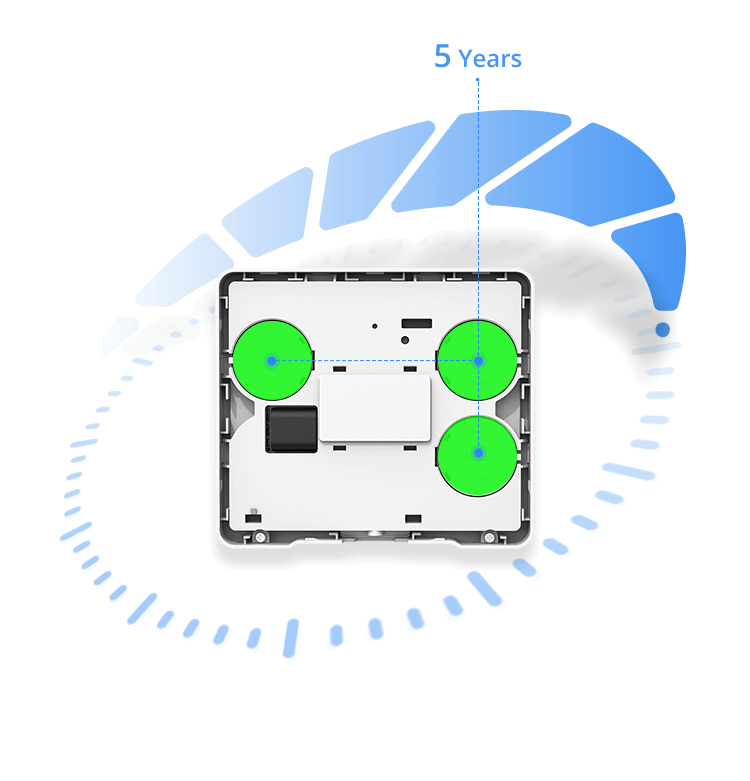

  • Ultra-low power consumption with up to 5-year battery life
  • Adapting to multiple scenarios with flexible installation methods
  • Equipped with NFC for easy configuration
  • Compliant with standard LoRaWAN® gateways and network servers

Make Business Smarter and Greener with E-ink Technology


Watch as a living game world comes alive all around you, with a seamless field of view wherever you look.
Wireless TransmissionTechnologyLoRaWAN®
Frequency BandCN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Tx Power16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity-137dBm
ModeOTAA/ABP Class A/Class B ( Default OTAA Class B)
E-ink Screen4.2-inch Black & White & Red E-Ink Screen
Resolution400 x 300 Pixels
DPI119
Viewing Angle180°
Refresh Rate16s (10 – 40°C)
Display CharacterLatin alphabet, English alphabet, Cyrillic alphabet, Greek alphabet, Chinese character, Japanese character, and Hangul
Display LanguagesSupport Displaying up to 150 Languages Including English, Chinese (Simplified & Traditional) , Spanish, French, Japanese, Portuguese, etc. (Exclude Hebrew, Arabic & Thai)
OperationButton1 x Reset Button (Internal) + 1 x Screen Button
Buzzer1 x Buzzer
ConfigurationNFC Configuration via Mobile App
Physical CharacteristicsPower Supply3 × 590mAh CR2450 Lithium Batteries
Battery LifeAround 5 Years (Class A Mode + 1 Screen Refresh per Day)
Around 1 Year (Class B Mode + 12 Screen Refreshes per Day)
Operating Temperature0°C to +40°C (0℉ to +104℉)
Operating Humidity0% to 95% (non-condensing) below 25°C/77℉
Ingress ProtectionIP30
Color & MaterialWhite, ABS + PC
Dimension99 × 87 × 10.5 mm (3.90 × 3.43 × 0.41 in)
Installation3M Tape Mounting, Wall Screw Mounting


DS3604 Datasheet

DS3604 User Guide

Separate email addresses with a comma.
Submit

Start with the customer – find out what they want and give it to them.

Specifications

Brand Milesight
Frequency Band AS923
Display E-Ink
Power type CR2450
Display feature 4.2-inch Black & White & Red
