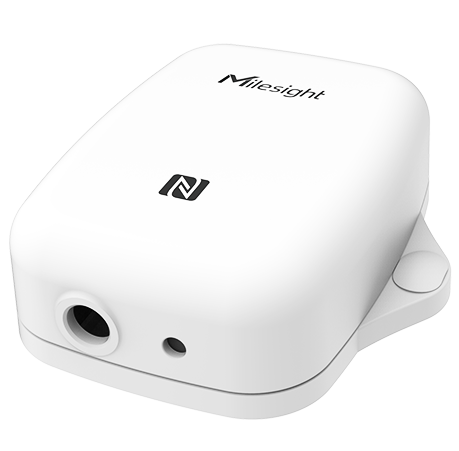

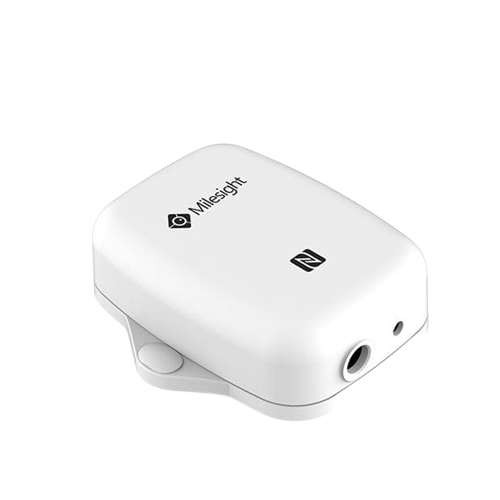

Milesight EM300 Temperature Humidity Sensor

https://harotechs.com/web/image/product.template/35/image_1920?unique=9398c82
(0 review)

Adopt Sensirion industrial-grade digital sensor and provide ±0.3℃ high accuracy of temperature and ±3% RH of humidity
Compatible with industry-standard LoRaWAN® gateways.IP67 Waterproof, Wireless,5/10 Years Battery Life.

US$ 58.00 58.0 USD US$ 58.00

US$ 58.00

Not Available For Sale

  • Brand
  • Frequency Band
  • Sensor
  • Power type
  • Communication
  • Waterproof
  • Configure

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

 LoRaWAN Temperature/Humidity Sensor

Adopt Sensirion industrial-grade digital sensor and provide ±0.3℃ high accuracy of temperature and ±3% RH of humidity
Compatible with industry-standard LoRaWAN® gateways.IP67 Waterproof, Wireless,5/10 Years Battery Life.

With a range of up to 15 km in rural areas and 2 km in urban areas


Features

  • Temperature Measurement Range -30°C to + 70°C, Accuracy 0°C to + 70°C (±0.3°C), -30°C to 0°C (±0.6°C)
  • Accuracy 10% to 90% RH (±3%), below 10% and above 90% RH(±5%), Resolution 0.5% RH
  • IP67 Waterproof: Equipped with IP67 rated enclosure to fit into more application scenariUltra Low Power Consumption

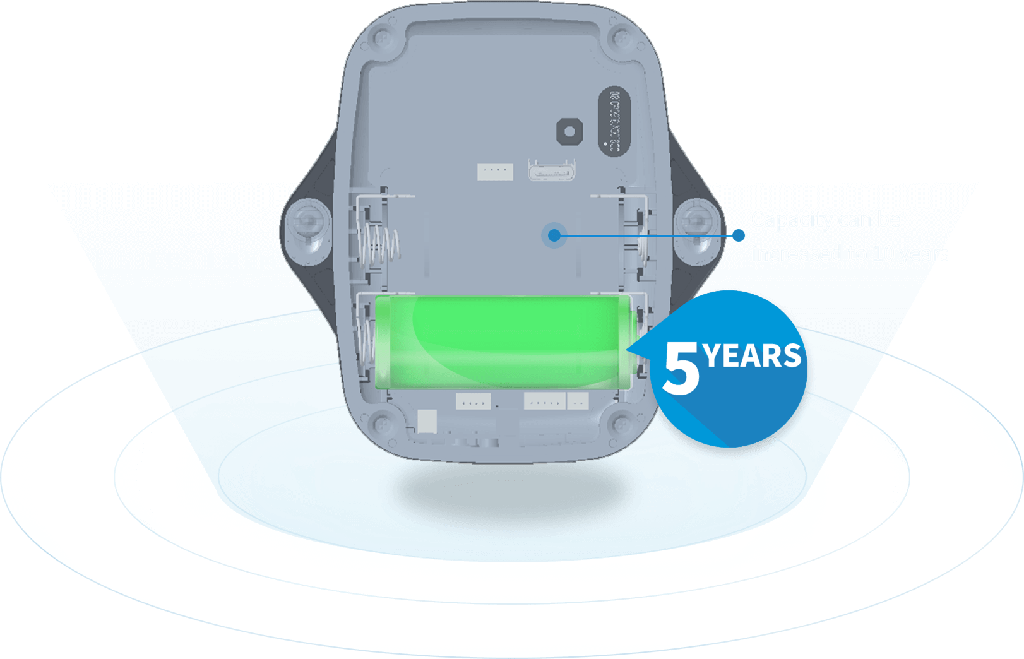

  • Easily replaceable battery with up to 10 years service life: ER18505 4000 mAh Li-SOCl2 Battery, Dual Battery Holders (One Battery by Default)
  • Mode OTAA/ABP Class A
  • Resolution 0.1°CHumidity Measurement Range 0% to 100% RH
  • Physical Characteristics Power Supply ER18505 Li-SOCl2 4000 mAh battery (8000 mAh optional)
  • Battery Life ≧ 5 years ( for 1 battery)
  • Operating Temperature -30°C to 70°C
  • Ingress Protection IP67
  • Dimension 88 × 87 × 27 mm
  • Mounting Wall (screws or 3M adhesives)



LoRaWAN®FrequencyCN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
Tx Power20dBm (915) / 16dBm (868) / 17dBm (470)
Sensitivity-147dBm @300bps
ModeOTAA/ABP Class A
Temperature MeasurementRange-30°C to + 70°C
Accuracy0°C to + 70°C (±0.3°C), -30°C to 0°C (±0.6°C)
Resolution0.1°C
Humidity MeasurementRange0% to 100% RH
Accuracy10% to 90% RH (±3%), below 10% and above 90% RH(±5%)
Resolution0.5% RH
Physical CharacteristicsPower SupplyER18505 Li-SOCl2 4000 mAh battery (8000 mAh optional)
Battery Life≧ 5 years ( for 1 battery)
Operating Temperature-30°C to 70°C
Ingress ProtectionIP67
Dimension88 × 87 × 27 mm
MountingWall (screws or 3M adhesives)



EM300-TH Datasheet

  EM300-TH User Guide


EM300-TH v3 Firmware v1.0.4


AM103/103L Firmware v1.01

Specifications

Brand Milesight
Frequency Band AS923
Sensor Temperature/Humidity
Power type 1x 4000mAh
Communication LoRaWAN
Waterproof IP67
Configure NFC
