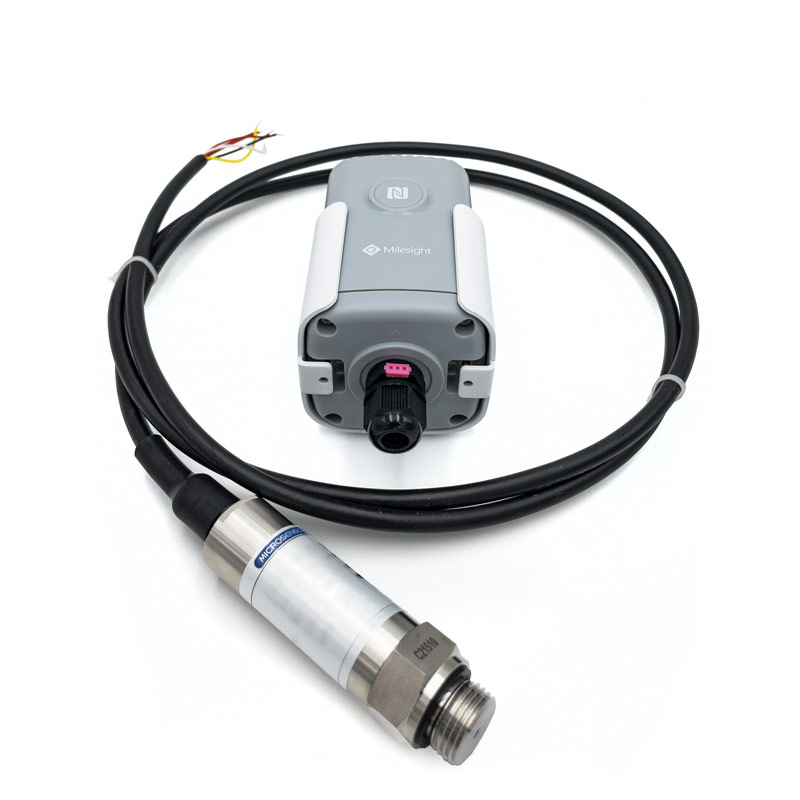

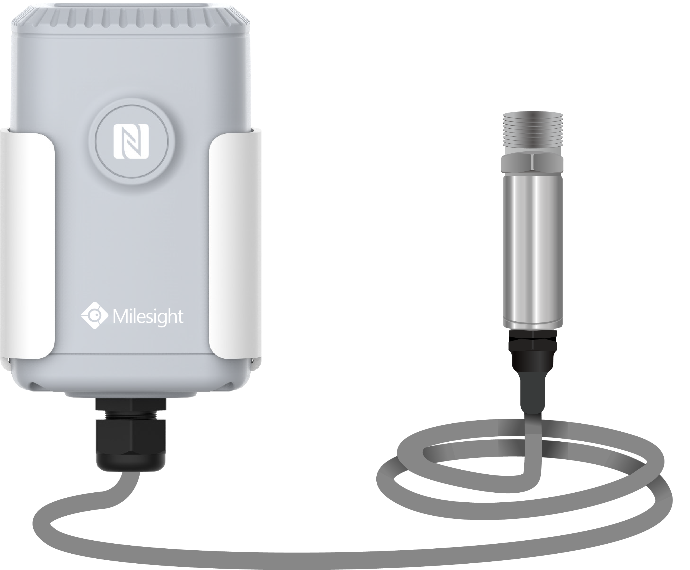

Milesight LoRaWAN Pipeline Pressure Sensor

https://harotechs.com/web/image/product.template/39/image_1920?unique=3cbf206
(0 review)

EM500-PP sensor is designed for measuring pressures from liquids and gases in order to realize the pressure monitoring of tank level or leakage in pipes

US$ 264.00 264.0 USD US$ 264.00

US$ 264.00

Not Available For Sale

  • Brand
  • Frequency Band
  • Sensor
  • Power type
  • Communication
  • Waterproof
  • Configure
  • Cable length

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

LoRaWAN Pipeline Sensor

EM500-PP sensor is designed for measuring pressures from liquids and gases in order to realize the pressure monitoring of tank level or leakage in pipes

Features

  • Measuring Range: 0 ~ 1600 kPa (16 Bar)
  • Measuring Accuracy is less than ±0.3% FS
  • Temperature Compensation for High Accuracy
  • Shock-resistant and Vibration-resistant
  • Weather and Waterproof
  • LoRaWAN Wireless Transmission with ultra-low power consumption and easy deployment
  • Built-in 19000 mAh high-capacity battery can be used for 10 years.
  • NFC enabled
  • Easy Installation




LoRaWANFrequencyAU915/AS923
Tx Power20dBm
Sensitivity-147dBm @300bps
ModeOTAA/ABP Class A
MeasurementRange0 ~ 1600 kPa (16 Bar)
Accuracy±0.5% FS
//
Physical CharacteristicsPower Supply19000 mAh Li-SOCL2 battery
Operating Temperature-30°C to +70°C
Ingress ProtectionIP66
Dimension105.4× 71 × 69.5 mm
MountingDIN rail, wall





EM500-PP Datasheet

  EM500-PP User Guide

EM500-PP Communication Protocol



Separate email addresses with a comma.
Submit


AM103/103L Firmware v1.01

Specifications

Brand Milesight
Frequency Band AS923
Sensor Pipe Line pressure
Power type 19000mAh
Communication LoRaWAN
Waterproof IP67
Configure NFC
Cable length 1.5m
