LoRaWAN® Field Tester

https://harotechs.com/web/image/product.template/432/image_1920?unique=5dc9e81
(0 review)

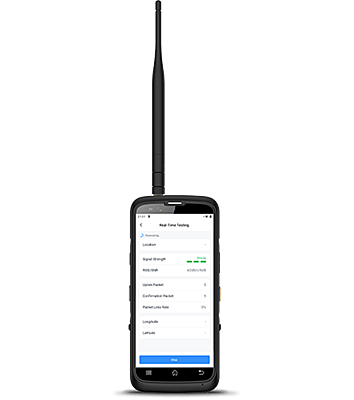

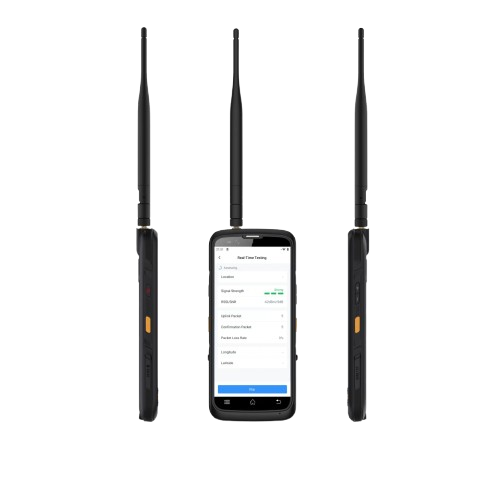

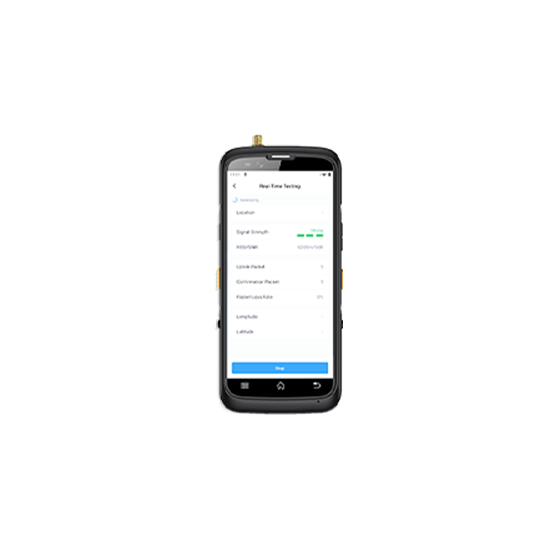

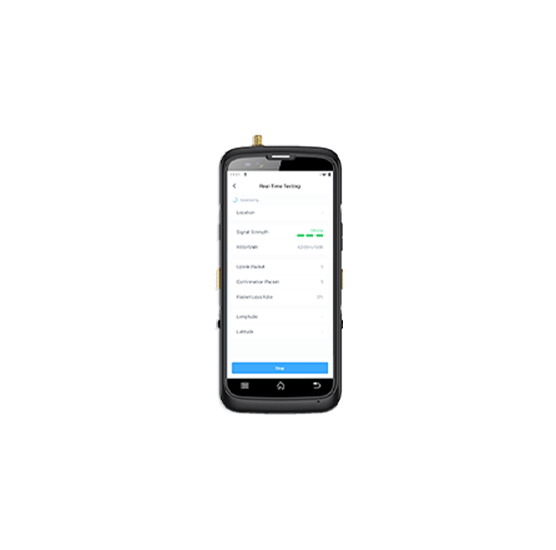

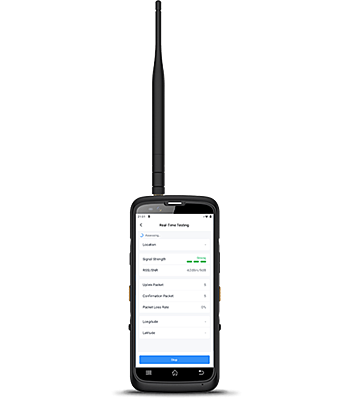

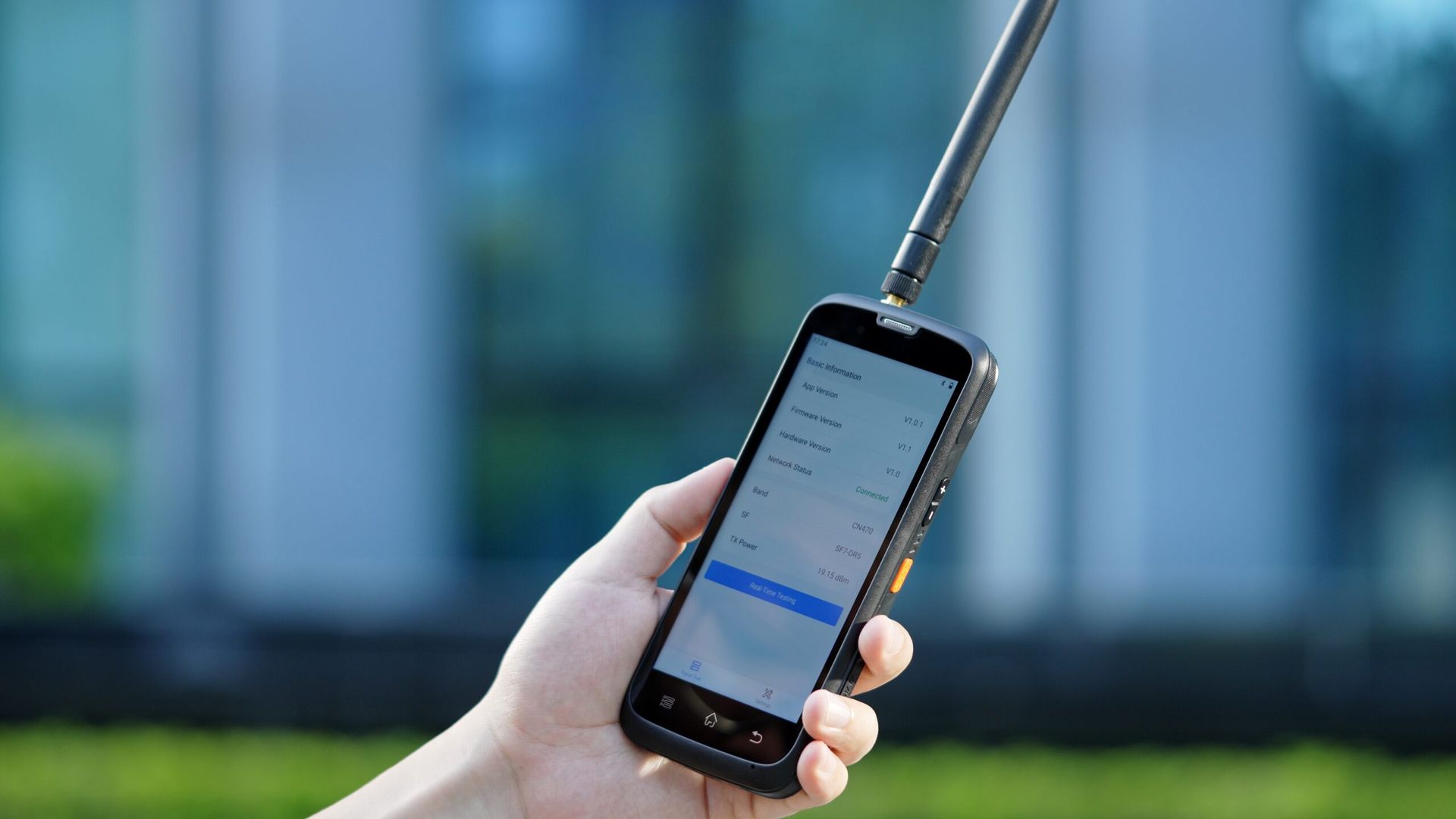

The Milesight Field Tester FT101 is the ultimate companion for signal assessment and optimization in LoRaWAN® networks. Featuring a 5.72-inch HD touch screen, it provides real-time network signal testing and analysis at your fingertips, making it easier to deploy and manage LoRaWAN® devices.

US$ 584.00 584.0 USD US$ 584.00 VAT Excluded US$ 650.00

US$ 584.00 VAT Excluded US$ 650.00

Not Available For Sale

  • Brand

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Unlock Optimal LoRaWAN® Connectivity

The Milesight Field Tester FT101 is the ultimate companion for signal assessment and optimization in LoRaWAN® networks. Featuring a 5.72-inch HD touch screen, it provides real-time network signal testing and analysis at your fingertips, making it easier to deploy and manage LoRaWAN® devices. ​

Features

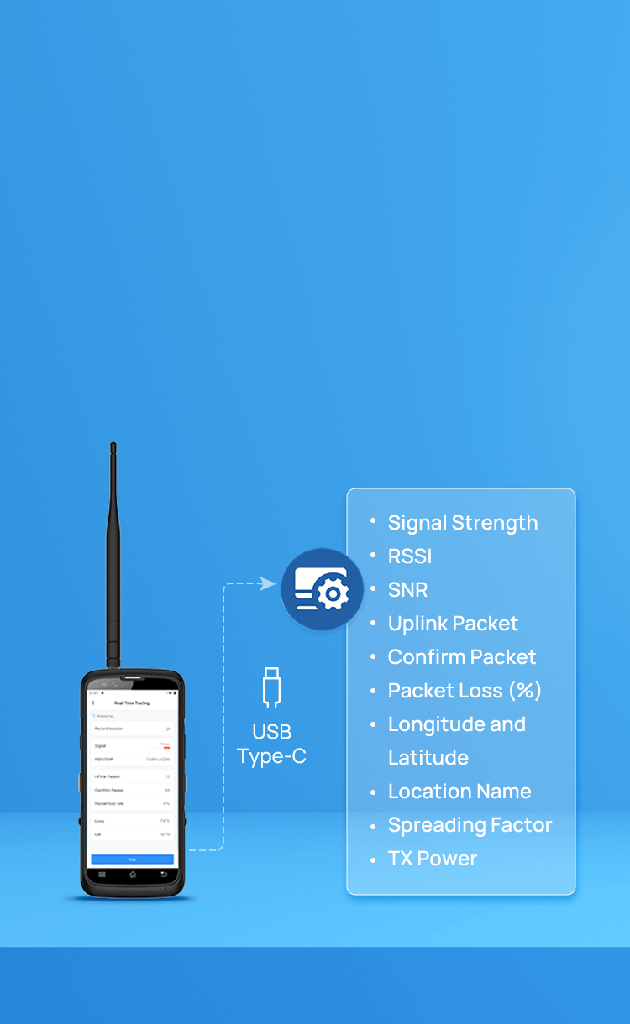

    • Real-Time Network Signal Testing and Analysis
    • 5.72 Inch HD Touch Screen
    • Full Frequency Band Testing Capability
    • Records Signal Test Results with GPS Location
    • Seamless Report Export and Data Analysis
    • Long-lasting Battery Life


  • FT101
Display
Screen5.72-inch TP LCD Touch Screen
Resolution1440 x 720 Pixels
Hardware System
CPUOcta-core MTK6762, 2 GHz
Memory4GB RAM + 64GB ROM
Operating SystemAndroid 12.0

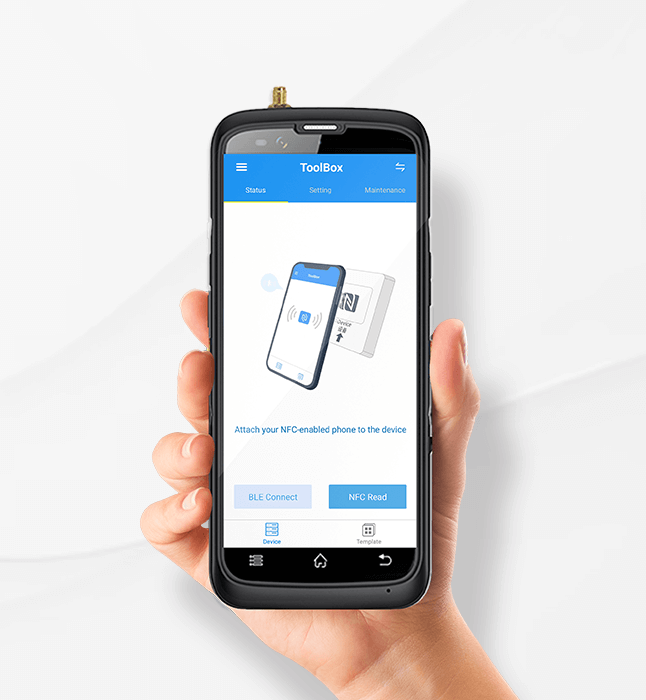

NFCSupport ISO/IEC 14443A Protocol, Reading Distance: 1-3cm
Extendable Storage1 × Micro SD Slot Support up to 256G
LoRaWAN®
Channel1
Antenna Connector1 × 50 Ω SMA Female Connector
Frequency Band1CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Sensitivity-137dBm@125kHz, SF=12
Max Output Power19dBm (470 MHz) /16dBm (868 MHz)/22dBm (915 MHz)
ProtocolLoRaWAN® V1.0.3
Work ModeOTAA Class A
Interfaces
Wi-FiIEEE 802.11 b/g/n, 2.4 GHz
IEEE 802.11 a/n/ac, 5 GHz
BluetoothBluetooth 4.0 (BLE)
GNSSGPS/Glonass/Beidou/Galileo
USB1 x USB 3.0 Type-C Port for Power & OTG
Physical Characteristics
Power Supply1. Built-in 4.3V/4300mAh Lithium-iron Chargeable Battery
2. 5V⎓2A by USB Type-C
Battery Life2Around 8 Hours (Standby Mode: >300h)
Operating Temperature-10°C - 50°C
Storage Temperature-20°C - 60°C
Relative Humidity95% (Non-condensing)
ColorBlack
Ingress ProtectionIP65
Dimension178 × 83 × 17 mm (7 × 3.26 × 0.67 in)
Weight242 g (Without Antenna)




FT101 Datasheet​

FT101 User Guide

Firmware & SDK Download
