Milesight LoRaWAN Gas Methane (CH4) Detection Sensor

https://harotechs.com/web/image/product.template/53/image_1920?unique=3b0d6d6
(0 review)

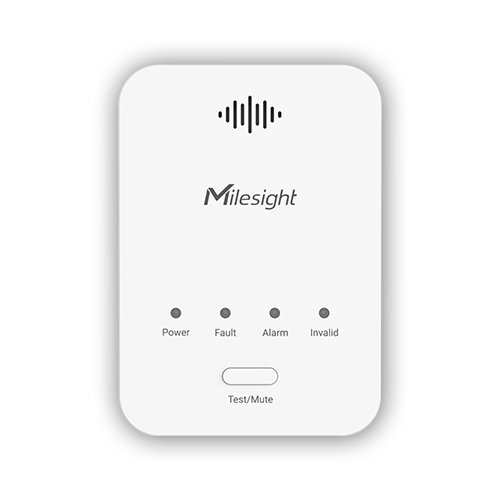

Milesight GS101 is a LoRaWAN® residential gas detector that allows you to detect methane (CH4) leakage in houses, apartments, hotels, etc., and avoids potential damage before danger occurs.

US$ 84.00 84.0 USD US$ 84.00 US$ 126.00

US$ 84.00 US$ 126.00

Not Available For Sale

  • Brand
  • Frequency Band
  • Sensor
  • Power type
  • Communication
  • Data log

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

LoRaWAN CH4 Gase detection Sensor

GS101 is a LoRaWAN® residential gas detector to detect thenatural
gas leak and send alarms. When the concentration causedbygasleak reaches the preset threshold, the detector will trigger bothLEDlight alarm and buzzer sound alarm, it also supports controllingoutputs to close the gas valve and open the vent fans topreventpotential accidents. Apart from local alarms, GS101 can also report the normal statusofthe device and alarm messages remotely by the use of LoRaWAN®technology. Integrating with Milesight LoRaWAN® gatewayandMilesight IoT Cloud solution, users can monitor all the sensor dataand control the device remotely and visually

 Features

  • Built-in semiconductor gas detection sensor with 5-year-long life expectancy and no calibrationneeded
  • High sensitivity gas leak detection and support 8% LEL alarm threshold
    Equipped with buzzer and light indicators to indicate the device powered, faulty, alarmed, andinvalid status
  • Equipped with a test button to test the device’s normal or abnormal status
  • Equipped with outputs for controlling external appliances such as gas valves and vent fans,reducing potential accidents
  • Store 800 historical records locally in 7 types and unable to reset
    Built-in NFC for easy configuration
  • Compatible with standard LoRaWAN® gateways and network servers
    Quick and easy management with Milesight IoT Cloud solution

Safety -A Tool for Life



Watch as a living game world comes alive all around you, with a seamless field of view wherever you look.
Wireless TransmissionTechnologyLoRaWAN®
FrequencyCN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity-137dBm @300bps
ModeOTAA/ABP Class C
Measurement and AlarmsDetecting GasMethane (CH4)
Detection PrincipleSemiconductor Sensor
Warm-up TimeAbout 180s
Alarm Level8% LEL
Alarm TypeSound, Light
Alarm Volume85 dBA @1 Meter
Working Life5 Years (In Clear Air)
OthersOutput Signal1 × Relay Output: normally open, max 250 VAC/10A,
1 × Solenoid Valve Output: 12V, 100ms Pulse Output
Button1 × Test/Mute/Reset/Reboot Button
LED Indicators1 × Power (Green), 1 × Fault (Yellow), 1 × Alarm (Red), 1 × Invalid (Yellow)
ConfigurationMobile App via NFC
Historical Records StorageAlarm Records, Alarm Dismissed Records, Device Fault Records, Device Fault Recovered Records, Device Power On Records, Device Power Off Records, Device Invalid Records
Physical CharacteristicsPower ConnectorDC Jack Connector
Power Supply12VDC, 1A
Operating Temperature-10°C to +55°C
Relative Humidity0% to 95% (non-condensing)
Ingress ProtectionIP30
Dimension120 × 85 × 32.5 mm (4.72 × 3.35 × 1.28 in)
Material & ColorPC+ABS (Flame Retardant), White
InstallationWall Mounting


GS101 Datasheet

GS101 User Guide



Separate email addresses with a comma.
Submit
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.

Specifications

Brand Milesight
Frequency Band AS923
Sensor CH4
Power type 12VDC@1A
Communication LoRaWAN
Data log 800 Historical locally in 7 type
