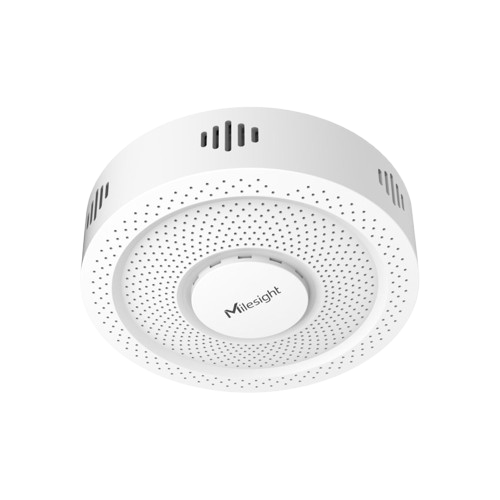

Milesight LoRaWAN® Vape Detector

https://www.harotechs.com/web/image/product.template/386/image_1920?unique=15c4229
(0 review)

GS601 is a LoRaWAN® vape detector designed to identify vapingandsmoking events and send alerts. Equipped with a suite of powerful embedded sensors, GS601 simultaneously measures temperature, humidity, TVOC, and PM parameters.

US$ 214.50 214.5 USD US$ 214.50 VAT Excluded US$ 470.00

US$ 214.50 VAT Excluded US$ 470.00

Not Available For Sale

  • Brand
  • Frequency Band
  • Sensor
  • Power type
  • Communication
  • D2D
  • Configure

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Vape Detector

GS601 is a LoRaWAN® vape detector designed to identify vapingandsmoking events and send alerts. Equipped with a suite of powerful embedded sensors, GS601 simultaneously measures temperature, humidity, TVOC, and PM parameters. When environmental changes reach the preset thresholds, thedetectoractivates both the LED light alarm and buzzer sound alarm. In addition to local alerts, GS601 can also remotely report theairquality status and alarm messages via LoRaWAN® technology. Byintegrating with Milesight LoRaWAN ® gateway andMilesightDevelopment Platform, users can visually monitor all sensor dataandmanage the device remotely. GS601 seamlessly blends into various installation environments, making it ideal in restrooms, changing rooms, classrooms, stairwells, apartments and other locations

 Features

  • Multi-Sensor Integration
  • Real-Time Status Alerts
  • Resilient Against Environmental Interference
  • Adjustable Buzzer Hibernation Duration
  • Instant Flame Alarming
  • Anti-Tamper & Theft Protection


         Vape Detector



Watch as a living game world comes alive all around you, with a seamless field of view wherever you look.
  • GS601
Wireless Transmission
TechnologyLoRaWAN®
FrequencyRU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power16dBm (868MHz)/22dBm(915MHz)
Sensitivity-137dBm @300bps
ModeOTAA/ABP Class C
Sensors
Temperature
Operating PrincipleDigital CMOSens® technology (MEMS)
Range-20°C ~ 60°C
Accuracy± 0.2°C
Resolution0.1°C
Humidity
Operating PrincipleDigital CMOSens® technology (MEMS)
Range0% ~ 100% RH
Accuracy± 2% RH
Resolution0.5% RH
Vape Index
Operating PrincipleLaser Scattering
Range0 ~ 100
Accuracy±10
Resolution1
TVOC
Operating PrincipleMOX (MEMS)
Range0 ~ 2000 μg/m3
Accuracy20 μg/m3 ±15% of readings (1 ~ 500 μg/m3)
Resolution1 μg/m3
PM1.0 & PM2.5 & PM10
Operating PrincipleLaser Scattering
Range0 ~ 1000 μg/m3
PM1.0&PM2.5
Accuracy		0~100 ug/m3: ±10 ug/m3
100~1000 ug/m3: ±10 % of measured value
PM10 Accuracy0~100 ug/m3: ±25 ug/m3
100~1000 ug/m3: ±25 % of measured value
Resolution1 μg/m3
Others
Button1 × Reset Button
LED & Buzzer1 × Status/Alarm Indicator + 1 × Buzzer (70dB@1m)
ConfigurationMobile App via NFC
Physical Characteristics
Power Supply5V/1A by Type-C Port
Operating Temperature-5°C ~ 45°C
Relative Humidity0 ~ 95% (non-condensing)
Ingress ProtectionIP30
DimensionФ 128 × 40 mm (Ф 5.04 × 1.57 in)
InstallationCeiling Mounting

GS601 Datasheet

​



Separate email addresses with a comma.
Submit
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.

Specifications

Brand Milesight
Frequency Band AS923
Sensor Vape
Power type 4 x 4000mAh battery
Communication LoRaWAN
D2D Support
Configure NFC
