Industrial LoRaWAN Temperature Transmitter

https://harotechs.com/web/image/product.template/129/image_1920?unique=a71927a
(0 review)

The Dragino LTC2 Industrial LoRaWAN Temperature Transmitter is designed to monitor temperature for different environment.

US$ 90.00 90.0 USD US$ 90.00

US$ 90.00

Not Available For Sale

  • Brand
  • Network Connection
  • Frequency Band
  • Temperature Range

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Industrial LoRaWAN Temperature Transmitter



The Dragino LTC2 Industrial LoRaWAN Temperature Transmitter is designed to monitor temperature for different environment. It supports to read PT100 probe and convert the value to temperature and
uplink to IoT server via LoRaWAN protocol.

LTC2 supports datalog feature. User can retrieve the sensor value via LoRaWAN downlink command.

LTC2 is powered by 8500mA Li-SOCI2 battery for long time measurement. The battery can run 2~10 years depends on the network environment and working mode.

Each LTC2 has two internal 16 bit ADC interfaces and are calibrated on 12 set resistors to make sure the accuracy measurement on wide range.

LTC2 is LoRaWAN v1.0.3 compatible. Each LTC2 is pre-load with a set of unique keys for LoRaWAN registration, register these keys to local LoRaWAN server and it will auto connect after power on.


Features


  • LoRaWAN v1.0.3 Class A
  • max: 2 x monitor temperature channels
  • Support 3 -wire PT-100
  • 8500mAh Li-SOCI2 Battery
  • Firmware upgrade via console
  • Wall Mountable
  • Configurable via LoRa or UART
  • Datalog and retrieve via LoRaWAN
  • Use pre-load PT100 probe or 3rd PT100 probe
  • Factory calibration for different resistance range
  • Support accuracy measure of resistance and upload
  • Battery Monitoring and upload



Interfaces:

  • 2 x Digital Input (bi-direction)
  • 2 x Digital Output
  • 2 x Relay Output (5A@250VAC / 30VDC)
  • 2 x 0~20mA Analog Input (res:0.01mA)
  • 2 x 0~30V Analog Input (res:0.01v)
  • Power Input 0~24V


LTC2 Datasheet

 LTC2 User manual



Separate email addresses with a comma.
Submit


Specifications

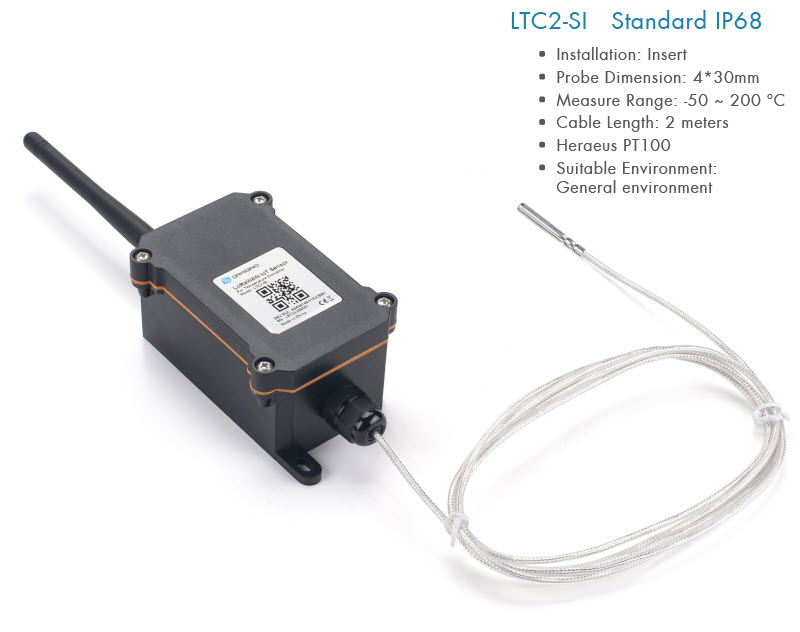

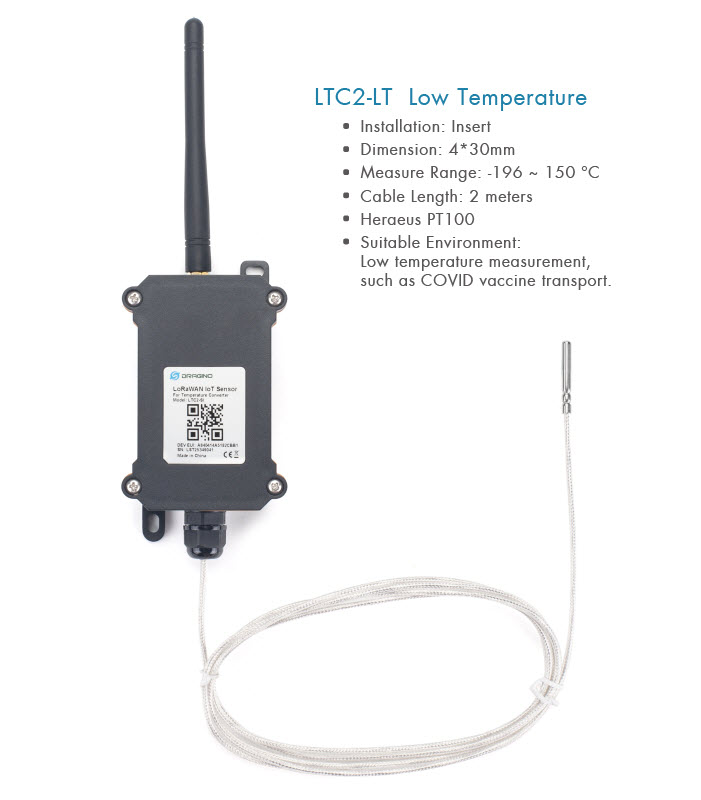

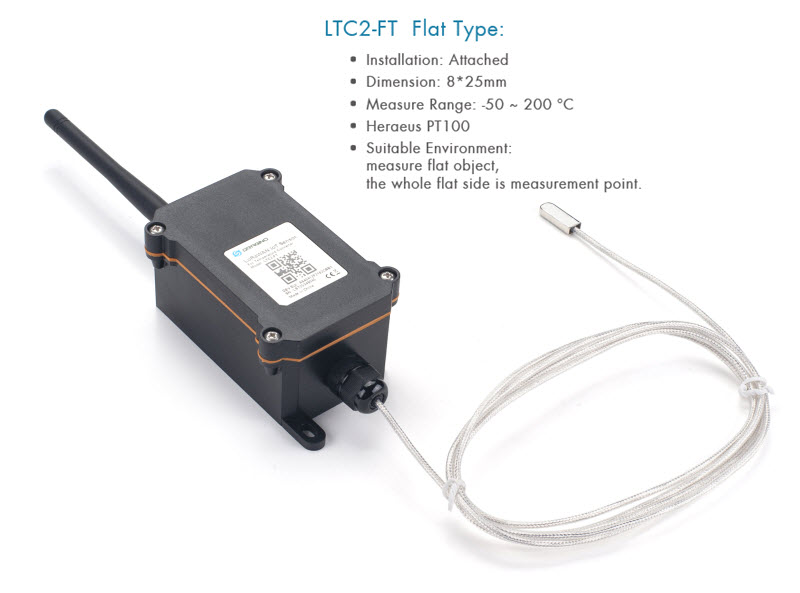

Temperature Range -50 ~ 200 °C or -50 ~ 200 °C & Food Safety or -196 ~ 150 °C or -50 ~ 200 °C & Flat Type or -50 ~550°C or dual-probe or Thermocoupler Converter or K type Thermocoupler
Brand Dragino
Network Connection LoRaWAN
Frequency Band AS923
