LoRaWAN Current sensor

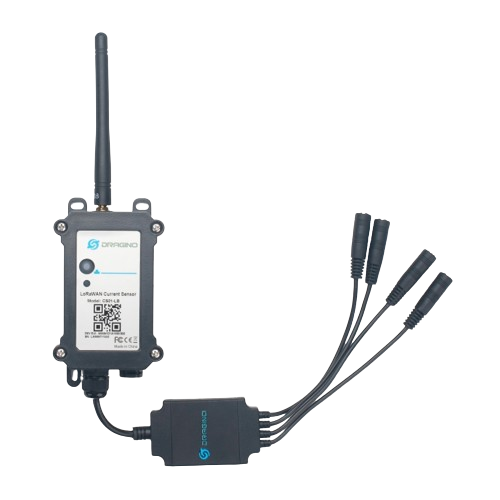

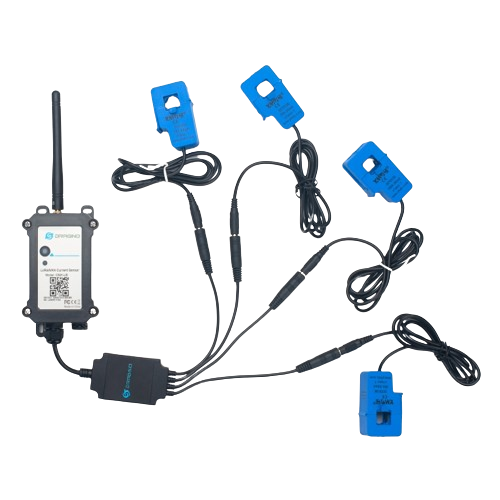

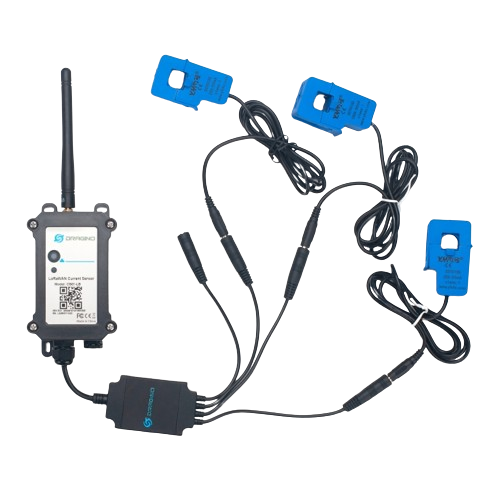

The Dragino CS01-LB is a 4 Channels Current Sensor Converter. It can convert the reading from current sensors and upload to IoT server via LoRaWAN Network.
CS01-LB can be used to monitor the machine running status and analyze power consumption trends.
The CS01-LB supports maximum 4 current sensors. The current sensors are detachable and can be replaced with different scales.
CS01-LB supports BLE configure and wireless OTA update which makes user easy to use.
CS01-LB is powered by 8500mAh Li-SOCI2 battery , it is designed for long-term use up to several years.
Features
- LoRaWAN 1.0.3 Class A
- Bands:CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
- Ultra-low power consumption
- Supports maximum 4 current sensors
- Support various current sensor Ratio: 50A, 100A etc.
- Monitor the machine running status
- Analyze power consumption trends
- Current Alarm
- Uplink on periodically
- Downlink to change configure
- Support BLE and LoRaWAN remote configure
- Support wireless OTA update firmware
- 8500mAh Li/SOCl2 Battery
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Sensor | None or 100A current sensor or 3x100A current sensor or 4x100A current sensor |
| Brand | Dragino |
| Power type | 8500mAh battery |
| Sensor Probe | 4 channels |
| Communication | LoRaWAN |
| Data log | Yes |
| Configure | BLE |
