  2. LoRaWAN Insertion Temperature Sensor

LoRaWAN Insertion Temperature Sensor

https://harotechs.com/web/image/product.template/213/image_1920?unique=a12c963
(0 review)

Milesight TS101, an innovative all-in-one insertion temperature sensor with an integrated transmitter, offers a wide temperature measuring range, making it versatile for various applications.

US$ 100.00 100.0 USD US$ 100.00

US$ 100.00

Not Available For Sale

  • Brand
  • Frequency Band
  • Package
  • Communication
  • Configure

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

LoRaWAN Insertion Temperature Sensor


Milesight TS101 is an all-in-one insertion temperature sensor withanintegrated transmitter. It is equipped with an advanced measuringunitthatprovides a wide temperature measuring range. With IP67 and IK10 ratings, the exquisite TS101 sensor issuitableformonitoring the inner temperature of Tobacco or grain stacks. It canalsobeapplied in other warehousing scenarios which require inner temperaturedetection with high efficiency. TS101 is compatible with Milesight LoRaWAN® gateway andmainstreamLoRaWAN® network servers. With this low power consumptiontechnology,TS101 can work for up to 10 years with a 4,000mAh battery. CombiningwithMilesight LoRaWAN® gateway and Milesight IoT Cloud solution, userscanmanage all sensor data remotely and visually

 Features

  • Equipped with highly accurate and stable DS18B20 temperature sensor chip with high resolution

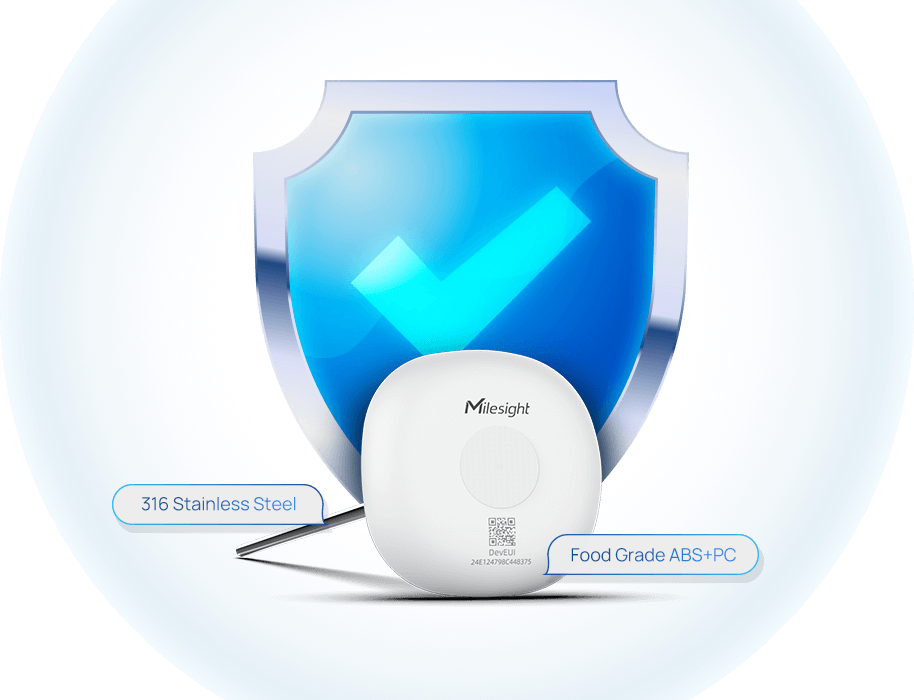

  • Adopt food-grade stainless-steel probe and shell material for efficient and safe detection
  • Store up to 1200 sets of data locally and support data retrievability and retransmission

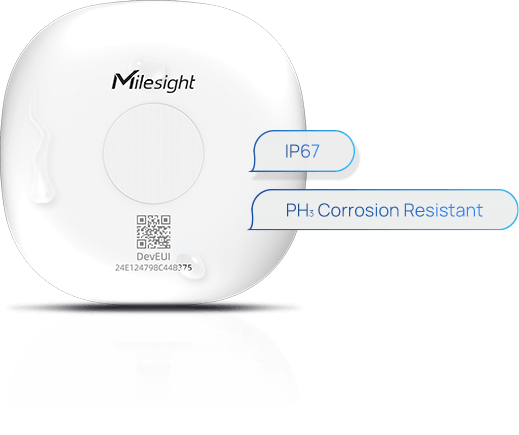

  • IP67 and IK10 rated and phosphine corrosion-resistant for harsh environment
  • Built-in 4000 mAh replaceable battery and works for up to 10 years without replacement
  • Integrated and compact design for wireless deployment



Sensing Temperatures with Precision and Ease


Milesight TS101, an innovative all-in-one insertion temperature sensor with an integrated transmitter, offers a wide temperature measuring range, making it versatile for various applications.


Watch as a living game world comes alive all around you, with a seamless field of view wherever you look.
Wireless Transmission
ProtocolLoRaWAN®
FrequencyCN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity-137 dBm @300bps
ModeOTAA/ABP Class A
Measurement

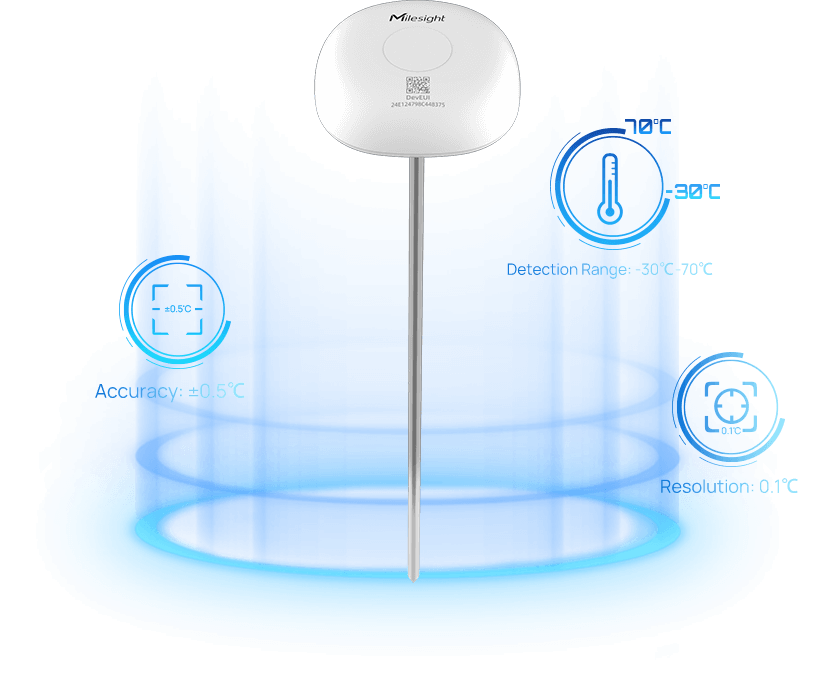

Detecting Range-30°C ~ +70°C
Accuracy± 0.5°C
Resolution0.1°C
Operation
Power On & OffNFC, Power Button (Internal)
ConfigurationNFC Configuration via Mobile App
Advanced FeatureData Storage, Data Retransmission, Data Retrievability, Abrupt Temperature Change Alarm
Physical Characteristics
Power Supply1 × 4000 mAh ER18505 Li-SOCl2 Replaceable Battery
Battery Life*10 Years (1 Hour Report Interval, 25°C)
Operating Temperature-30°C ~ +70°C
Relative Humidity0 ~ 95% (Non-condensing)
Material & ColorTransceiver: ABS+PC(Food-Grade, Phosphine Corrosion resistant), White
Sensor Probe: 316 Stainless Steel (Food-Grade, Phosphine Corrosion Resistant) , Silver Grey
Ingress ProtectionIP67
Impact ProtectionIK10 (Transceiver)
DimensionTransceiver: Ф 92 × 92 × 26 mm (Ф 3.62 × 3.62 × 1.02 in)
Sensor Probe: Ф 7 × 400 mm (Ф 0.28 × 15.75 in)
InstallationInsert Installation

​

TS101 Datasheet

TS101 User Guide

Payload Decoder




Separate email addresses with a comma.
Submit
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.

Specifications

Package Single unit or 2 pcs
Brand Milesight
Frequency Band AS923
Communication LoRaWAN
Configure NFC
