  2. LoRaWAN® Temperature Sensor TempSecure: Safeguarding Freshness

LoRaWAN® Temperature Sensor TempSecure: Safeguarding Freshness

https://harotechs.com/web/image/product.template/281/image_1920?unique=358fc68
(0 review)

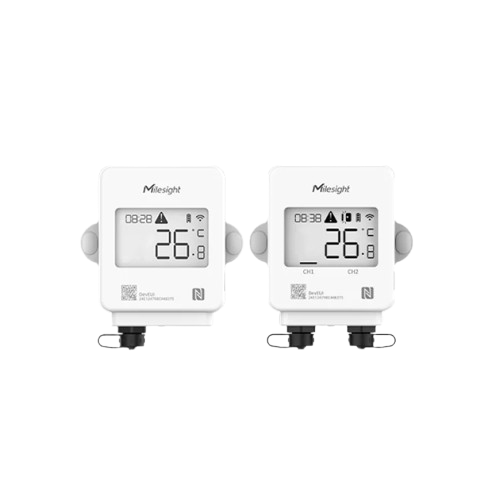

TS301/TS302, the LoRaWAN® temperature sensor with an LCD display. This device seamlessly connects to high-accuracy PT100 temperature probes and door magnetic sensors. Ideal for the food processing, pharmaceutical storage, and cold chain industries.

US$ 86.00 86.0 USD US$ 86.00 US$ 350.00

US$ 86.00 US$ 350.00

Not Available For Sale

  • Brand
  • Frequency Band
  • Display
  • Sensor Probe

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Effortless Temperature Monitoring Made simple

TS301/TS302, the LoRaWAN® temperature sensor with an LCD display. This device seamlessly connects to high-accuracy PT100 temperature probes and door magnetic sensors. Ideal for the food processing, pharmaceutical storage, and cold chain industries.

Features

    • Optimized Readability with LCD Screen
    • Up to 10,000 Sets of Historical Data Records
    • Data Retrieval and Retransmission
    • Efficient Data Export in PDF for Anti-Tampering
    • Meet HACCP and 21 CFR Part 11B Requirements
    • Ideal for Food Production, Pharmaceutical Storage and Cold Chain
    • Rugged Protection with IP65 Rating
    • LoRaWAN® Wireless Deployment with 5~15 Years Battery Life


TechnologyLoRaWAN®
FrequencyCN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power16dBm (868MHz)/22dBm (915MHz)/19dBm (470MHz)
Sensitivity-137dBm @300bps
ModeOTAA/ABP Class A
Sensor Connector
Connector Type5-pin M12 A-Coded Male Connector
Connector Number1TS301: 1 × Connector for PT100 Probe or Magnet Switch Sensor
TS302: 2 × Connectors for two PT100 Probes or PT100 + Magnet Switch Sensor
PT100 Connection3-wire Connection
Display
DisplayLCD Segment Code Screen
Viewing Direction12 O'clock
Others
Button1 × External Power Button + 1 × Internal Reset Button
LED Indicator1 × Status Indicator (Internal)
ConfigurationMobile App (via NFC) or PC software (via USB Type-C)
Data Logging10, 000 measurements and supports to export as CSV or PDF file
Physical Characteristics
Power Supply2 × 4000 mAh ER18505 Li-SOCL2 Batteries or Type-C USB (5V/1A)
Battery Life2TS30x + One or Two PT100 Probes: Around 5 years
(30°C, 10 min interval)TS302 + PT100 Probe+ Magnet Sensor: Around 5 years (10 triggers per day)
TS30x + One Magnet Sensor: Over 10 years (10 triggers per day)
Operating Temperature-30°C to +70°C
Relative Humidity0% to 95% (non-condensing)
Ingress ProtectionIP65
Weight175 g (TS301), 185 g (TS302)
Dimension109.35 × 75 × 29 mm (4.31 × 2.95 × 1.14 in)
InstallationWall Screw Mounting, Magnetic Mounting (Opt.）



DatasheetTS301/TS302

 TS301/TS302 Series User Guide

Firmweare & SDK Download

AM103/103L Firmware v1.01

Specifications

Sensor Probe Single Port or Dual Ports
Brand Milesight
Frequency Band AS923
Display E-Ink
