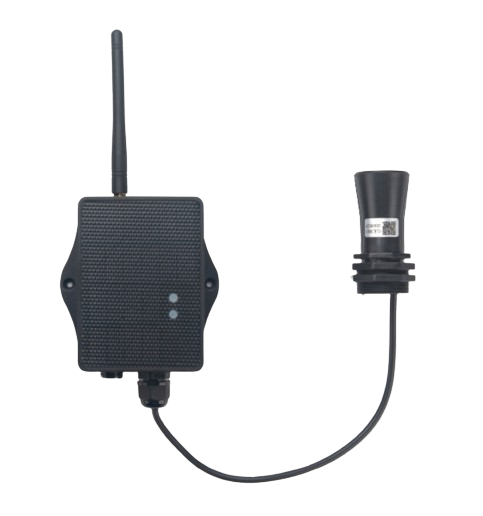

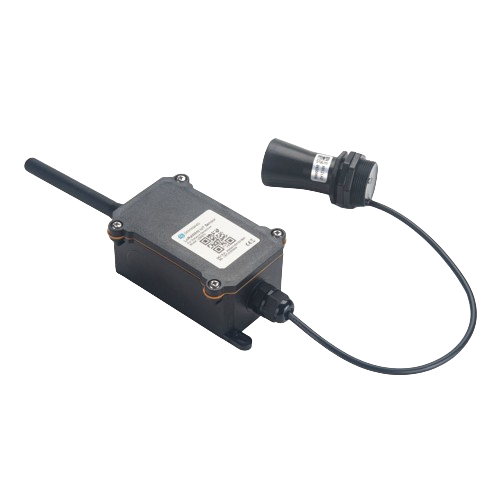

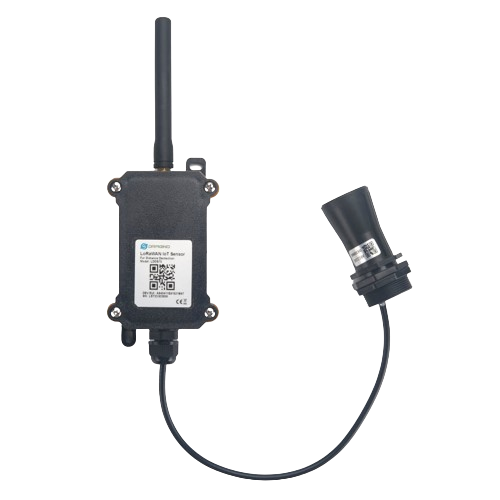

LoRaWAN Ultrasonic Distance Detection sensor

LoRaWAN Ultrasonic Distance Detection sensor

LoRaWAN Distance Detection Sensor for Internet of Things solution. It is used to measure the distance between the sensor and a flat object. The distance detection sensor is a module that uses ultrasonic sensing technology for distance measurement, and temperature compensation is performed internally to improve the reliability of data.

US$ 105.00 105.0 USD US$ 105.00

US$ 95.00

Brand
Sensor
Power type
Communication
- LoRaWAN
Data log
Configure
Measurement Range
- 28cm - 750cm + US$ 10.00
- 3cm - 450cm + US$ 17.00
- 2cm - 200cm

This combination does not exist.

ADD TO CART BUY NOW

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Dragino

We focus on the Internet of Things industry and keep evaluating new technology on improving user experience in IoT solution. We provide OEM/ODM service to worldwide clients. We have a set of offshore products and development kits to help clients to test, design and produce innovation IoT products in the shorter time, lower cost and lowest risk.

Dragino dedicates to promote Open Source IoT solution. Our Open Source products are sold world widely and gain good name in the Open Source Internet of Things filed.

Dragino Mission

Dragino's mission is to help customers to provide innovative IoT solutions in a fast/reliable/low-cost way.

Edit this title

Good writing is simple, but not simplistic.

Good copy starts with understanding how your product or service helps your customers. Simple words communicate better than big words and pompous language.

Ultrasonic Distance Sensor

LoRaWAN Distance Detection Sensor for Internet of Things solution. It is used to measure the distance between the sensor and a flat object. The distance detection sensor is a module that uses ultrasonic sensing technology for distance measurement, and temperature compensation is performed internally to improve the reliability of data. The DDS75-LB/LS can be applied to scenarios such as horizontal distance measurement, liquid level measurement, parking management system, object proximity and presence detection, intelligent trash can management system, robot obstacle avoidance, automatic control, sewer, bottom water level monitoring, etc.

It detects the distance between the measured object and the sensor, and uploads the value via wireless to LoRaWAN IoT Server.

The LoRa wireless technology used in DDSxx-LB/LS allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

DDSxx-LB/LS supports BLE configure and wireless OTA update which make user easy to use.

DDSxx-LB/LS is powered by 8500mAh Li-SOCI2 battery or solar powered + li-on battery, it is designed for long term use up to 5 years.

Each DDS75-LB/LS is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.

Feature

LoRaWAN 1.0.3 Class A
Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
Ultra-low power consumption
Distance Detection by Ultrasonic technology
Flat object range 280mm - 7500mm
Accuracy: ±(1cm+S*0.3%) (S: Distance)
Measure Angle: 40°
Cable Length : 25cm
Support Bluetooth v5.1 and LoRaWAN remote configure
Support wireless OTA update firmware
AT Commands to change parameters
Downlink to change configure
IP66 Waterproof Enclosure
8500mAh Li/SOCl2 Battery (DDS75-LB)
Solar panel + 3000mAh Li-on battery (DDS75-LS)

Common DC Characteristics:

Supply Voltage: Built-in Battery , 2.5v ~ 3.6v
Operating Temperature: -40 ~ 85°C

LoRa Spec:

Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz
Max +22 dBm constant RF output vs.
RX sensitivity: down to -139 dBm.
Excellent blocking immunity

Battery:

Li/SOCI2 un-chargeable battery
Capacity: 8500mAh
Self-Discharge: <1% / Year @ 25°C
Max continuously current: 130mA
Max boost current: 2A, 1 second

Power Consumption:

Sleep Mode: 5uA @ 3.3v
LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

Start with the customer – find out what they want and give it to them.

Separate email addresses with a comma.

Your Name *

Phone Number

Your Email *

Your Company

Subject *

Your Question *

Submit

Specifications

Power type	8500mAh battery or 3000mAh Li-ion battery with 0.9W solar panel
Measurement Range	28cm - 750cm or 3cm - 450cm or 2cm - 200cm
Brand	Dragino
Sensor	Ultrasonic Distance Sensor
Communication	LoRaWAN
Data log	Yes
Configure	BLE
