LoRaWAN Agriculture Sensor

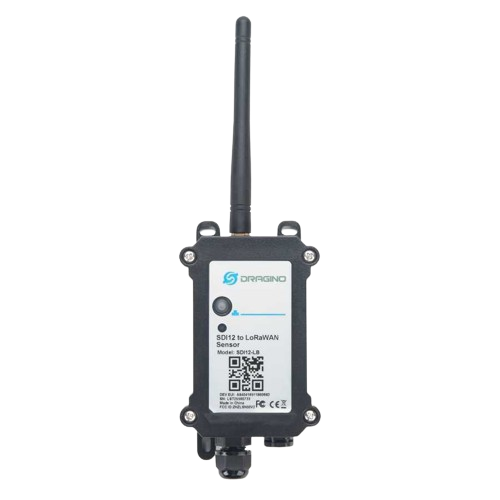

The Dragino SDI-12-LB/LS is a SDI-12 to LoRaWAN Converter designed for Smart Agriculture solution.
SDI-12 (Serial Digital Interface at 1200 baud) is an asynchronous serial communications protocol for intelligent sensors that monitor environment data. SDI-12 protocol is widely used in Agriculture sensor and Weather Station sensors.
SDI-12-LB/LS has SDI-12 interface and support 12v output to power external SDI-12 sensor. It can get the environment data from SDI-12 sensor and sends out the data via LoRaWAN wireless protocol.
The LoRa wireless technology used in SDI-12-LB/LS allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.
SDI-12-LB/LS is powered by 8500mAh Li-SOCI2 battery or solar powered + li-on battery it is designed for long term use up to 5 years.
Each SDI-12-LB/LS is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.
Features
- LoRaWAN 1.0.3 Class A
- Ultra-low power consumption
- Controllable 5v and 12v output to power external sensor
- SDI-12 Protocol to connect to SDI-12 Sensor
- Monitor Battery Level
- Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
- Support BLE and LoRaWAN remote configure.
- Support wireless OTA update firmware
- Uplink on periodically
- Downlink to change configure
- 8500mAh Li/SOCl2 Battery (SDI-12-LB)
- Solar panel + 3000mAh Li-on battery (SDI-12-LS)
Specifications
| Sensor Probe | Single Port or Three Ports |
| Brand | Dragino |
| Sensor | None |
| Power type | 12VDC with Build in 1000mAh Li-ion Battery |
| Communication | LoRaWAN |
| Data log | Yes |
| Configure | BLE |
