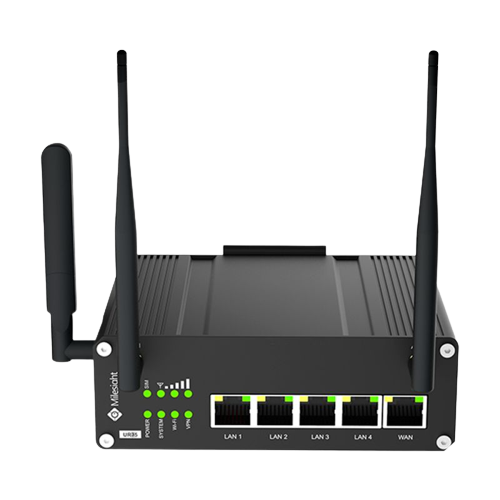

Milesight Industrial UR35 Pro Series Cellular Router

https://harotechs.com/web/image/product.template/19/image_1920?unique=5653589
(0 review)

The UR35 is an industrial-grade 4G LTE cellular router with a 5-port Ethernet interface for mission-critical communications.Featured with multiple network protocols and VPN tunnels,UR35 provides secure and reliable solutions for a range of M2M/IoT deployments.

US$ 256.00 256.0 USD US$ 256.00 US$ 320.00

US$ 256.00 US$ 320.00

Not Available For Sale

  • Brand
  • IoT Features

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Industrial Router

Equipped with 5-port Ethernet interface for mission-critical communications, featured with multiple network protocols and VPN tunnels, UR35 provides secure and reliable solutions for a range of M2M/IoT deployments.

With a built-in LTE CAT4 modem, it supports dual SIM backup for robust, reliable cellular communication.

To fulfil the market demand, UR35 is built with hardened enclosure, industrial components, and wide operation range from -40°C to 70°C for harsh environments.
Aside from Dual SIM redundancy and Wi-Fi for seamless wireless connectivity, it is also equipped with 4 PSE PoE ports, serial ports, digital I/O for field communications.




Features

  • 3G & 4G
  • Dual SIM
  • 5*10/100Mbps (1*WAN + 4*LAN)
  • 1*RS232 + 1*RS485
  • 1 Digital Input and 1 Digital Output
  • 1*MicroSD
  • Hardened & Rugged Enclosure
  • 4 PoE PSE Ethernet Ports
  • Supports Wi-Fi Client and AP Mode
  • OpenVPN/IPsec/PPTP/L2TP/DMVPN/GRE
  • Wide Operating Temp Range and Input Voltage



Enjoy Reliable Cellular Connectivity



Watch as a living game world comes alive all around you, with a seamless field of view wherever you look.
UR32UR35
CapabilitiesCPU528 MHz, 32-bit ARM Cortex-A7
Flash128 MB
Memory128 MB DDR3
Built-inWatchdog
GPSGPS + GLONASS
Micro SDSupports micro SD card up to 128 GB
InterfacesSIM Slots2
Ethernet Ports2 × 10/100 Mbps5 × 10/100 Mbps
Serial Ports1 x RS232 (optional RS485)1 x RS232 +1 x RS485  or 2 x RS485
DI/DO1 × DI + 1 × DO
Antenna Connectors2 x Cellular Connectors 1 x GPS/Wi-Fi Connector2 x Cellular Connectors 1 x Wi-Fi Connectors 1 x GPS Connector
NetworkNetwork ProtocolsIPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH
AAARADIUS, TACACS+, LDAP, Local Authentication
FirewallAnti-DDoS, SPI, ACL, DMZ, Port Mapping, MAC Binding
Wi-Fi (Optional)IEEE 802.11b/g/n
Serial PortTransparent (TCP Client/Server, UDP), Modbus Gateway (Modbus RTU to Modbus TCP), Modbus Master
ReliabilityVRRP, WAN Fail-over, Dual SIM Backup
VPNOpenVPN, IPsec, PPTP, L2TP, DMVPN, GRE
MaintenanceManagementWeb, CLI, SMS, Watchdog, On-demand Dial Up
Multilevel AuthorityMultiple Levels of User Authority
HardwarePower Input9-48 VDC
Power Output (Optional)2 × 802.3af/at PoE PSE4 × 802.3af/at PoE PSE
Ingress ProtectionIP30
Housing & WeightMetal, 271g (0.60 lb)Metal, 481g (1.06 lb)
Dimensions108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in)135 x 100 x 45 mm (5.31 x 3.94 x 1.77 in)
MountingDesktop, Wall or DIN Rail Mounting
OthersOperating Temperature-40°C to +70°C (-40℉ to +158℉) Reduced cellular performance above 60°C
Storage Temperature-40°C to +85°C (-40℉ to +185℉)
Relative Humidity0% to 95% (non-condensing) at 25°C/77℉
CertificationsRoHS, CE, FCC, AT&T (UR32)
Frequency Band*E
AF
AU
LTE: B1/B3/B5/B7/B8/B20/B38/B40/B413G: B1/B5/B8GSM: B3/B8
LTE: B2/B4/B5/B12/B13/B14/B66/B713G: B2/B4/B5
LTE: B1/B2/B3/B4/B5/B7/B8/B28/B403G: B1/B2/B5/B8GSM: B2/B3/B5/B8


UR35 Datasheet

UR35 User Guide


Separate email addresses with a comma.
Submit

Specifications

IoT Features Wi-Fi or GPS+PSE+Wi-Fi
Brand Milesight
