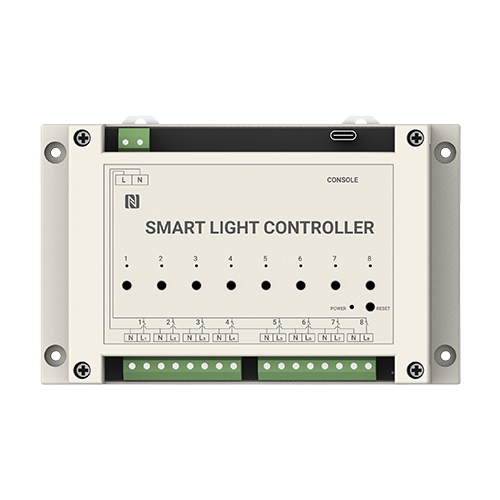

Milesight LoRaWAN Smart Light Controller

https://harotechs.com/web/image/product.template/52/image_1920?unique=6ded8d1
(0 review)

Milesight WS558 is a LoRaWAN® Smart Light Controller that allows occupants to centrally control the lights on eight circuits.

US$ 150.00 150.0 USD US$ 150.00 US$ 300.00

US$ 150.00 US$ 300.00

Not Available For Sale

  • Brand
  • Switch Type

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

LoRaWAN Smart Lighting

WS558 is a LoRaWAN® Smart Light Controller for monitoringandcontrolling lights locally or remotely. With 2 circuit typesand8switches, it fits different rooms without the needofre-wiring,reducing the renovation costs. Compliant withMilesightLoRaWAN® gateway and Milesight IoT Cloud solution, WS558canbe monitored and controlled via webpage or mobile Appremotelyand triggered by other Milesight sensors. Besides, WS558supportsMilesight D2D communication protocol, which canset upconnection quickly and be controlled without gateway. WS558 can be widely used for wireless control of indoor lights, fans, heaters, machines, etc

 Features

  • LN type or switch type optional, capable of controlling up to 8 circuits of lights, adopts different indoor wiring
  • Supports local switch button control, able to test the lamp status without networking after thewiring is ompleted
  • Collects data of current, voltage, power, electrical consumption for smart management
  • Ultra-wide-distance wireless transmission up to line of sight of 15 km
    Equipped with NFC for one-touch configuration, supports card emulation mode
  • Compliant with standard LoRaWAN® gateways and network servers
    Compliant with Milesight IoT Cloud
  • Supports Milesight D2D protocol to enable ultra-low latency control without gateway
  • Supports multicast for control in bulk

Save Power and Carry On


Watch as a living game world comes alive all around you, with a seamless field of view wherever you look.
ModelWS558-LNWS558-Switch
ElectricalCircuit TypeLN TypeSwitch Type
Input Voltage100~250 VAC, 50~60 Hz
Output8 Active Outputs8 Passive Switches
Capacitive & Inductive LoadMaximum 5A per output, total 16AMaximum 5A per switch
Resistive LoadMaximum 10A per output, total 16AMaximum 10A per switch
Electrical MeasurementVoltage (VAC), Current (mA), Power Factor (%), Power (W), Power Consumption (kW·h)—–
Wireless TransmissionProtocolLoRaWAN®, Milesight D2D
FrequencyCN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity-137dBm
ModeOTAA/ABP Class C
SoftwareConfigurationNFC, USB Type-C or Downlink
Switch ControlLocal Press or Remote Control
Advanced FeaturesMulticast, Remote Schedule Switch, Overcurrent Protection, Milesight D2D Agent
Physical CharacteristicsColor/ MaterialCreamy-white, ABS
Operating Temperature-20°C to +60°C (-4℉ to +140℉)
Relative Humidity≤ 95% (Non-condensing)
Dimensions145 × 90 × 40 mm (5.7 × 3.54 × 1.57 in)
InstallationWall Mounting, DIN Rail Mounting


WS558 Datasheet

WS558 User Guide
