Milesight LoRaWAN Temperature Sensor

https://harotechs.com/web/image/product.template/43/image_1920?unique=9748eaf
(0 review)

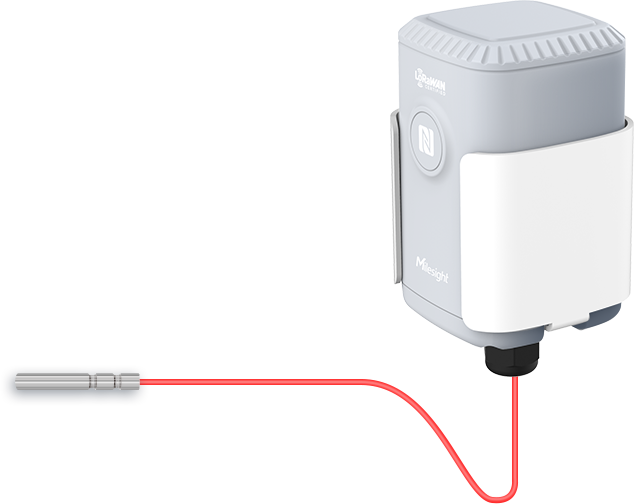

EM500-PT100 is equipped with a highly accurate PT100 temperature sensor. This platinum resistance temperature detector is used universally to measure extreme temperatures.

US$ 170.00 170.0 USD US$ 170.00

US$ 170.00

Not Available For Sale

  • Brand
  • Temperature Range
  • Power type
  • Communication
  • Waterproof
  • Configure
  • Cable length

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

LoRaWAN Outdoor Soil Sensor

EM500-PT100 equips with a highly accurate temperature sensor PT100, the platinum resistance temperature detector offers much most stable and precise temperature measurement from -200 to 800°C.

 Features

  • Vibration-resistant construction
  • In three-wire circuit
  • Customisable temperature detection range ( -200°C to 800°C)
  • Terminal heads available in straight tube, armoured, SMT, threaded and magnet.
  • Built-in 19000 mAh high-capacity battery can be used for 10-years
  • IP66 rated protective case (IP67 on request)
  • LoRaWAN wireless transmission
  • Configure the device via NFC


LoRaWANFrequencyAU915/AS923
Tx Power20dBm
Sensitivity-147dBm @300bps
ModeOTAA/ABP Class A
MeasurementRangeEM500-PT100-T200: -50 °C to +200 °C
EM500-PT100-T500: -50 °C to +500 °C
EM500-PT100-T800: -50 °C to +800 °C
(Customizable from -200 °C to +800 °C)
Accuracy±0.5%
Physical CharacteristicsProbe Length1m (Customizable)
Probe TypeStraight tube (Bolt-on ring, magnet and other types customizable)
Power Supply19000 mAh Li-SOCL
Operating Temperature-30°C to +70°C
Ingress ProtectionIP66 (IP67 as required)
Dimension105.4 × 71 × 69.5 mm (Sensor and cable are not included)
MountingDIN rail, wall, pole mounting





EM500-PT100 Datashee

EM500-PT100 User Gui

EM500-PT100 Communication Protocol



Separate email addresses with a comma.
Submit
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.

Specifications

Temperature Range -200°C ~ 50°C or -50°C ~ 200°C or -50°C ~ 500°C or -50°C ~ 800°C
Brand Milesight
Power type 19000mAh
Communication LoRaWAN
Waterproof IP67
Configure NFC
Cable length 1.5m
