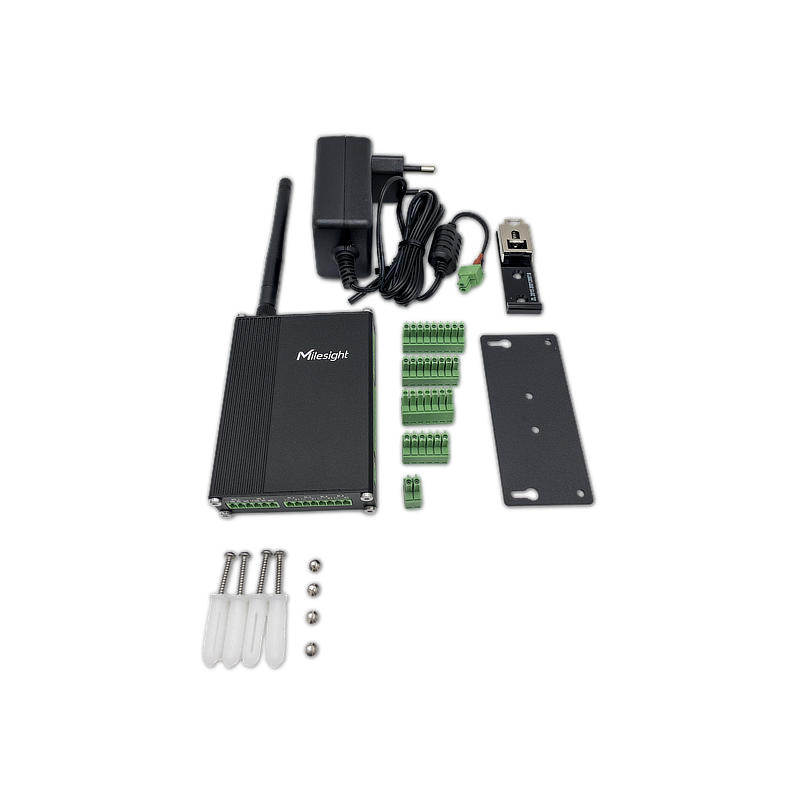

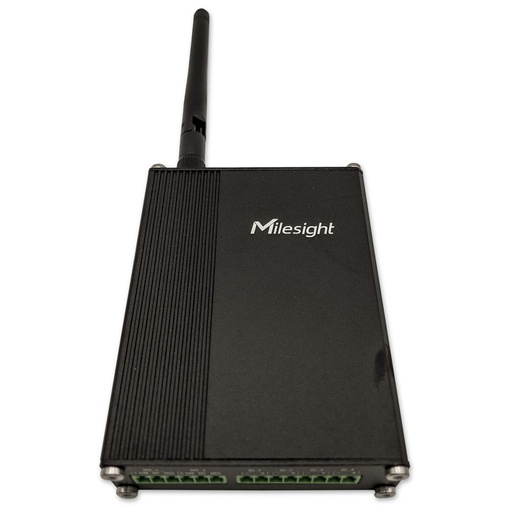

Milesight UC300 IoT Controller (warranty 2 years)

https://www.harotechs.com/web/image/product.template/47/image_1920?unique=54242c7
(0 review)


The Milesight UC300 Controller is a versatile and powerful device that can be used for remote control and data acquisition, supporting data transmission via LoRaWAN or 3/4G networks.converter. Product warranty is 2 years

US$ 219.00 219.0 USD US$ 219.00 VAT Excluded

US$ 145.50 VAT Excluded

Not Available For Sale

  • Brand
  • Network
  • Power type
  • Interface
  • Waterproof
  • Configure

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

IoT Controller

UC300 is an IoT controller used for remote control and data acquisition from multiple s sensors. It contains different I/O interfaces such as analog inputs, digital inputs, relay outputs, serial ports, and more, which support remote device data transmission and control via LoRaWAN®, 3G/4G networks or SMS. Besides, UC300 supports multiple trigger conditions and actions which work autonomously even when the network drops.

 Features

  • Easy to connect with diverse wired devices through DIO/RS232?RS485/PT100 RTD input interfaces.
  • Supports LoRaWAN or 3G/4G wireless communication.
  • Multiple triggering conditions and actions.
  • Embedded watchdog for device working stability.
  • Industrial metal case design with wide operating temperature range.
  • Compliant with standard LoRaWAN gateways and network servers.
  • Quick and easy management with Milesight IoT Cloud solution.



Wireless Transmission
TechnologyLoRaWAN®or 3G/4G (Hardware Optional)
LoRaWAN®US915/AU915/KR920/AS923
OTAA/ABP Class C
Cellular1 (Micro SIM-3FF)
TCP/UDP/MQTT/AWS/ONENet/Milesight IoT Cloud/SMS Application Mode
Data Interfaces
Interface Type3.5 mm Terminal Block
GPIO4 × DI + 2 × DO
Serial Port1 × RS232 + 1 × RS485
Analog Input2 × 4~20 mA, 2 × 0~10 V, 2 × PT100 RTD Input
Others
Configuration Port1 × Type-C
LED Indicators1 × System, 1 × ACT
Built-inWatchdog, Timer
Physical Characteristics
Operating Temperature-20°C ~ 60°C (-4℉ to +140℉)
Dimensions93 × 70 × 22 mm (3.66 × 2.76 × 0.87 in)
InstallationDesktop, Wall Mounting, DIN Rail Mounting


UC300-IOT Datashee

UC300-IOT User Guide

UC300 (LoRaWAN) Communication Protocol

  UC300 (Cellular) Communication Protocol​


Separate email addresses with a comma.
Submit
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.

Specifications

Network Cellular Network or LoRaWAN Network
Brand Milesight
Power type USB power
Interface Modbus RS485/RS232 4 x DI, 2 x DO, 2 x 4~20mA, 2 x 0~1-V, 2 x PT100 RTD
Waterproof IP30
Configure USB type C
