Milesight UC500 LoRaWAN Controller

https://harotechs.com/web/image/product.template/48/image_1920?unique=8418ca0
(0 review)

The Milesight LoRaWAN Controller UC500 is a great way to connect multiple sensors and control them via a single point. You can use it as a pulse counter and connect a gas meter, water meter and a flow meter or take advantage of the industrial interfaces RS232, RS485, GPIO and the analog input.

US$ 160.00 160.0 USD US$ 160.00

US$ 160.00

Not Available For Sale

  • Brand
  • Antenna
  • Power type
  • Interface
  • Communication
  • Waterproof
  • Configure

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

IoT Controller

The Milesight LoRaWAN Controller UC500 is a great way to connect multiple sensors and control them via a single point. You can use it as a pulse counter and connect a gas meter, water meter and a flow meter or take advantage of the industrial interfaces RS232, RS485, GPIO and the analog input.

This Controller supports the industry standard LoRaWAN® (frequencies – CN470/IN865/EU868/AU915/US915/KR920/AS923 – a leading IoT – ready wireless technology. It’s secure, reliable, mobile and easy to use. It’s compatible with all LoRaWAN® gateways, including Helium hotspot miners. LoRaWAN® guarantees a range of 15 km in rural areas and 2 km in urban areas.

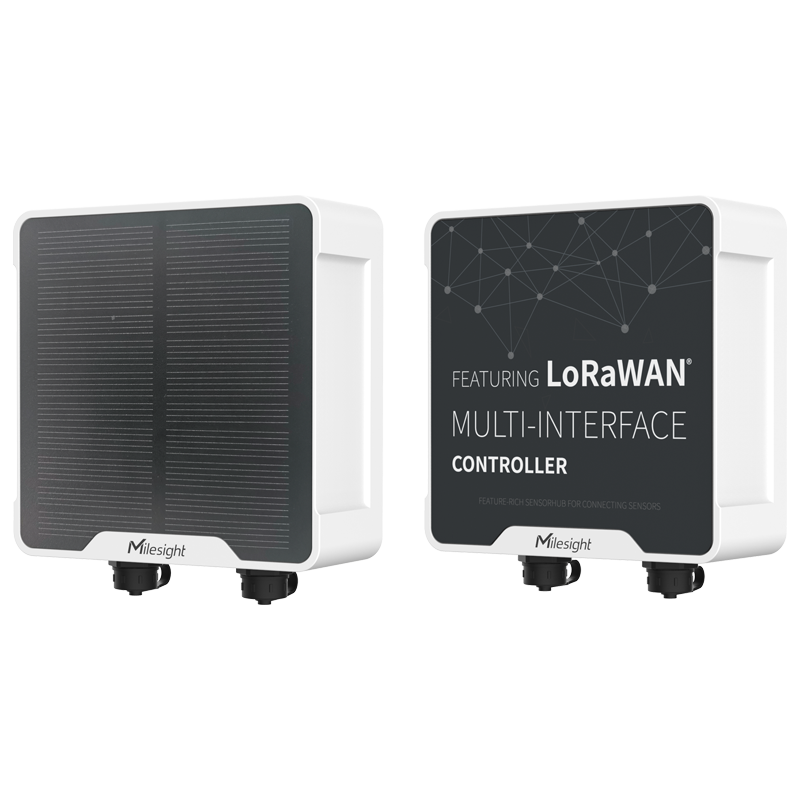

The UC500 series has two versions – UC501 and the UC502. The first one features a rechargeable, 2 × 2550 mAh battery with solar panel. The UC502 features a Non-rechargeable, built-in 19000 mAh Li-SOCl2 battery. Both are easy to install on walls or poles.

Configuration of the sensor is very easy via mobile phone or PC and NFC (Near Field Communication) interface. Other interfaces on the device are 2 × GPIO; 1 × RS485/RS232 switchable; 1 × 3.3 V output; 1 × 5/9/12 V output switchable; 2 × analog input; 1 × 3.3 V output; 1 × 5/9/12 V output switchable.

The Milesight LoRaWAN Controller UC500 Series supports the Milesight IoT Cloud, accessible through web interface and mobile app (Android/iOS) with touchscreen interface. The cloud allows you to turn on and off your electrical devices remotely at any time.


 Features

IP67 Waterproof
The UC500 LoRaWAN controller equipped with IP67 rated enclosure to satisfy long time operation in all-weather environment

LoRaWAN-Based

  • Compatible with industry standard LoRaWAN gateways
  • With a range of up to 15 km in rural areas and 2 km in urban areas


Rich Industrial Interfaces

  • RS232
  • RS485
  • GPIO
  • Analog Input

The UC500 LoRaWAN controller built-in multiple industrial interfaces to connect all types of sensors, meters and other appliances.

Modbus to LoRaWAN® Converter
Bridge Modbus data between serial and Ethernet network via LoRaWAN®

Pulse Counter
Simple acquisition of metering data via LoRa
The pulse counter feature allow you to monitor gas, water and electricity consumption or electricity production.


Specifications
Dimension120.1 × 120.1 × 55.4 mm (4.73 × 4.73 × 2.18 in)
Interface 12 × GPIO
1 × RS485/RS232 switchable
1 × 3.3 V output
1 × 5/9/12 V output switchable
Interface 22 × analog input
1 × 3.3 V output
1 × 5/9/12 V output switchable
Available FrequencyAU915/AS923




UC501&502 Datasheet

UC501&502 User Guide

UC501&502 Communication Protocol



Separate email addresses with a comma.
Submit
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.

Specifications

Antenna Build in Antenna or External Antenna
Power type Chargable Battery or Unchargable Battery
Brand Milesight
Interface RS485/RS232, 2 x AI, 2 x GPIO
Communication LoRaWAN
Waterproof IP67
Configure NFC
