LoRaWAN Air/Water Pressure sensor
The Dragino PS-LB/LS series sensors are LoRaWAN Pressure Sensor for Internet of Things solution. PS-LB/LS can measure Air, Water pressure and liquid level and upload the sensor data via wireless to LoRaWAN IoT server.

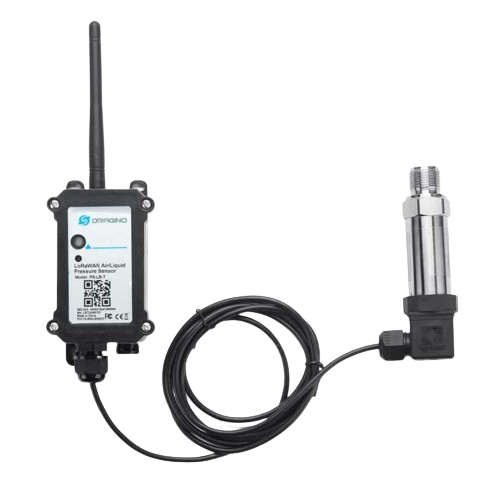

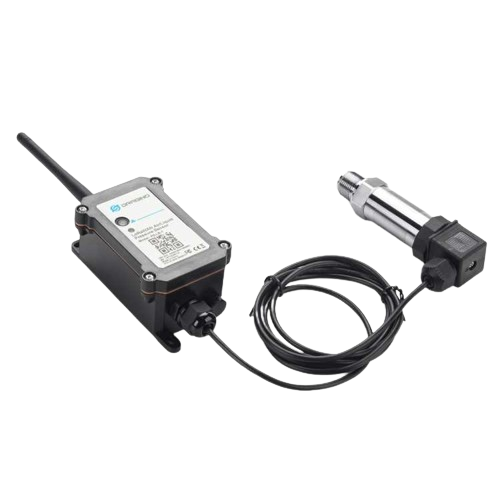

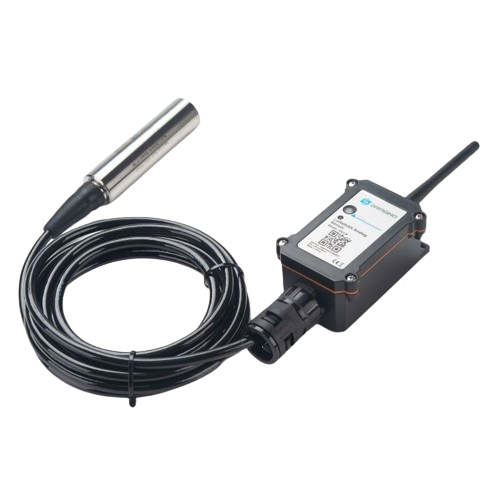

The PS-LB/LS series sensors include Thread Installation Type and Immersion Type, it supports different pressure range which can be used for different measurement requirement.
The LoRa wireless technology used in PS-LB/LS allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.
PS-LB/LS supports BLE configure and wireless OTA update which make user easy to use.
PS-LB/LS is powered by 8500mAh Li-SOCI2 battery or solar powered + li-on battery , it is designed for long term use up to 5 years.
Each PS-LB/LS is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.
Specifications
| Sensor | T type Pressure or I type pressure |
| Power type | 8500mAh battery or 3000mAh Li-ion battery with 0.9W solar panel |
| Brand | Dragino |
| Network Connection | LoRaWAN |
| Frequency Band | AS923 |
| Configure | BLE |
| Measurement Range | 0-100m |
