RS485 Weather Station Sensor

Sensor Spec:

Resolution: 0.2mm

• Accuracy: ±Rainfall strength: 0mm～4mm/min (max 8mm/min)
• Input Power: DC 5~24v
• Interface: RS485
• Working Temperature: 0℃～70℃



Sensor Spec:

• Wind speed range: 0 ~ 60m/s
• Wind direction range: 0 ~ 360°
• Start wind speed: ≤0.3m/s
• Accuracy: ±（0.3＋0.03V）m/s , ±1°
• Input Power: DC 5~24v
• Interface: RS485
• Working Temperature: -30℃～70℃
• Working Humidity: <100% (no dewing)
• Power Consumption: 13mA ~ 12v.
• Cable Length: 2 meters

Sensor Spec:

• CO2 Range: 0～5000ppm, accuracy: ±3%F•S（25℃）
• CO2 resolution: 1ppm
• PM2.5/PM10 Range: 0～1000μg/m3 , accuracy ±3%F•S（25℃）
• PM2.5/PM10 resolution: 1μg/m3
• Input Power: DC 7 ~ 24v
• Preheat time: 3min
• Interface: RS485
• Working Temperature: CO2: 0℃～50℃; PM2.5/PM10: -30 ~ 50℃
• Working Humidity: PM2.5/PM10: 15～80%RH (no dewing); CO2: 0～95%RH
• Power Consumption: 50mA@ 12v.

Sensor Spec:

• Detect if there is rain or snow
• Input Power: DC 12 ~ 24v
• Interface: RS485
• Working Temperature: -30℃～70℃
• Working Humidity: 10～90%RH
• Power Consumption: No heating: 12mA @ 12v, heating: 94ma @ 12v.

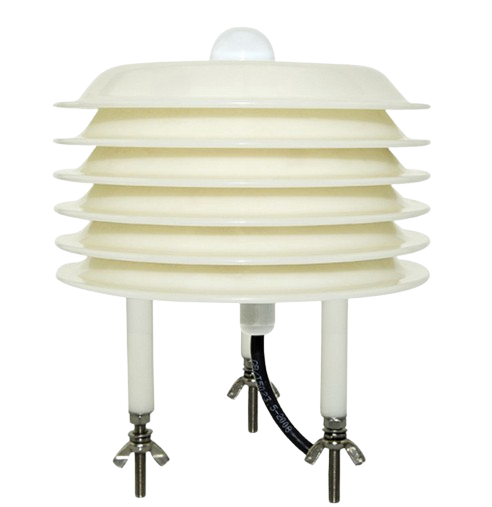

Specifications:

• Input Power: DC 12 ~ 24v
• Interface: RS485
• Temperature Sensor Spec: Range: -30 ~ 70℃,resolution 0.1℃,Accuracy: ±0.5℃
• Humidity Sensor Spec: Range: 0 ~ 100% RH,resolution 0.1 %RH,Accuracy: 3% RH
• Pressure Sensor Spec: Range: 10～1100hPa,Resolution: 0.1hPa,Accuracy: ±0.1hPa
• Illuminate sensor: Range: 0～2/20/200kLux,Resolution: 10 Lux,Accuracy: ±3％FS
• Working Temperature: -30℃～70℃
• Working Humidity: 10～90%RH
• Power Consumption: 4mA @ 12v

Specifications:

• Input Power: DC 5 ~ 24v
• Interface: RS485
• Detect spectrum: 0.3～3μm（300～3000nm）
• Measure strength range: 0～2000W/m2
• Resolution: 0.1W/m2
• Accuracy: ±3%
• Yearly Stability: ≤±2％
• Cosine response: ≤7％(@ Sun angle 10°)
• Temperature Effect: ±2％（－10℃～40℃）
• Working Temperature: -40℃～70℃
• Working Humidity: 10～90%RH
• Power Consumption: 4mA @ 12v

Specifications:

• Input Power: DC 5 ~ 24v
• Interface: RS485
• Response Spectrum: 400～700nm
• Measure range: 0～2500μmol/m2•s
• Resolution: 1μmol/m2•s
• Accuracy: ±2%
• Yearly Stability: ≤±2％
• Working Temperature: -30℃～75℃
• Working Humidity: 10～90%RH
• Power Consumption: 3mA @ 12v

Specifications:

• Input Power: 9~30 VDC
• Sense diameter: 6cm
• Pulse Output, each pulse , 0.1mm
• Max rain: 24mm/min
• Operation Temperature: -40 ~ 60 °C
• Operation Humidify: 0~99%RH(no dew)

Sensor Spec:

Wind Speed:

• Range: 0~60m/s
• Accuracy: ±(0.2m/s±0.02*v)(v : the wind speed)
• Ultrasonic measurement,no start wind strength needed

Wind Direction:

• Range: 0~3599
• Accuracy: +3°
• Ultrasonic measurement,no start wind strength needed
• Built-in electronic compass. No need to consider installation direction

Temperature:

• Range: -40°C ~ +80°C
• Accuracy: +0.5°C

Humidity:

• Range: 0 ~ 99% RH
• Accuracy Tolerance : Typ +3% RH

Air Pressure:

• Accuracy: ±0.15kPa@25°C 101kPa
• Range: 0~120kPa

Noise:

• Range: 30dB~120dB
• Accuracy: +0.5dB

PM2.5:

• Range: 0~1000ug/m3
• Accuracy: ±3%FS
• Resolution: 1ug/m3

PM10:

• Range: 0~1000ug/m3
• Accuracy: +3%FS
• Resolution: 1ug/m3

llumination:

• Range: 0~200k Lux
• Accuracy: +7%(25 °C)
