  2. Milesight UF31 5G Modem

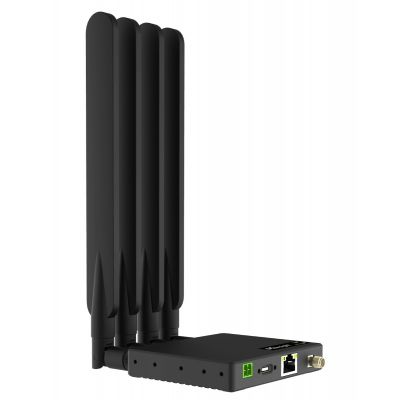

Milesight UF31 5G Modem

https://harotechs.com/web/image/product.template/12/image_1920?unique=0a3e6de
(0 review)

The UF31 is a high-performance 5G modem designed for 5G wireless networking. It supports 5G NSA&SA, 4G LTE, and 3G networks from most countries' telecom service providers. For field devices, a USB Type-C port and an Ethernet port are used to provide high-speed internet access.

US$ 600.00 600.0 USD US$ 600.00

US$ 600.00

Not Available For Sale

(US$ 600.00 / 1)
  • Brand

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

5G Dongle

The UF31 5G Dongle is a 5G-to-wired device which provides USB Type-C for data & power transmission. It is born to offer a 4G to 5G migration solution for mobility, embedded system, and general-purpose applications in the most economical and effortless way.

Full immersion

  • Ultra Fast 4G/5G Connectivity
  • Plug & Play Networking
  • Pint Size Design
  • Flexible Deployment

Enjoy 5G Network Was Never This Easy



Watch as a living game world comes alive all around you, with a seamless field of view wherever you look.
Hardware SystemCPUQuad-core ARM Cortex-A55，2 GHz
Memory1 GB LPDDR4X RAM and 1 GB NAND Flash
Cellular InterfaceNetwork5G NR SA & NSA/4G LTE/WCDMA
Frequency5G Sub-6: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N79
LTE FDD: B1/B3/B5/B7/B8/B18/B19/B20/B28/B32
LTE TDD: B38/B40/B41/B42/B43/B46
WCDMA: B1/B5/B8
Antenna Connector4 × 50 Ω SMA Connectors (Center PIN: SMA Female)
SIM Slots1（Micro SIM-3FF）
Ethernet InterfaceNumbers1 × 10/100/1000 Mbps LAN Port
ModeFull or Half Duplex (Auto-Sensing)
GNSSAntenna Connector1 × 50 Ω SMA Connector (Center PIN: SMA Female)
TechnologyGPS/GLONASS/Beidou/Galileo/QZSS
OthersUSB1 × USB 3.0 (Type-C) for Power Supply, Network Supply and Debug
Reset Button1 × RESET (Internal)
LED Indicators1 × STATUS，1 × Cellular Network
Built-inWatchdog, Timer
SoftwareNetwork ProtocolsIPv4/IPv6, TCP, UDP, DHCPv4/DHCPv6, HTTP, HTTPS, DNS, ARP, Telnet, SSH, etc.
Security 1Access Control, Port Mapping, Custom Rules
ManagementWeb, CLI, DeviceHub
Power SupplyPower Input1. 5-24 VDC, with Surge-Protection and Reverse Polarity Protection
2. 5V/3A by USB Type-C Port
Power Connector2-pin 3.5 mm Terminal Block
Physical CharacteristicsIngress ProtectionIP30
Housing & ColorMetal, Black
Dimension90 x 72 x 15 mm (3.54 x 2.83 x 0.59 in)
InstallationDesktop, Wall Mounting, DIN Rail Mounting
EnvironmentalOperating Temperature-20°C to +50°C (-4℉ to +122℉)
Storage Temperature-40°C to +85°C (-40℉ to +185℉)
Ethernet Isolation1.5 kV RMS
Relative Humidity0% to 95% (Non-condensing) at 25°C/77℉


UF31 5G Dongle Datasheet

UF31 5G Dongle User Guide

.

Separate email addresses with a comma.
Submit

Specifications

Brand Milesight
