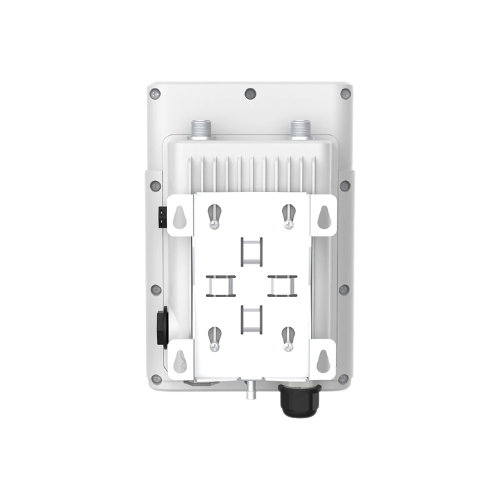

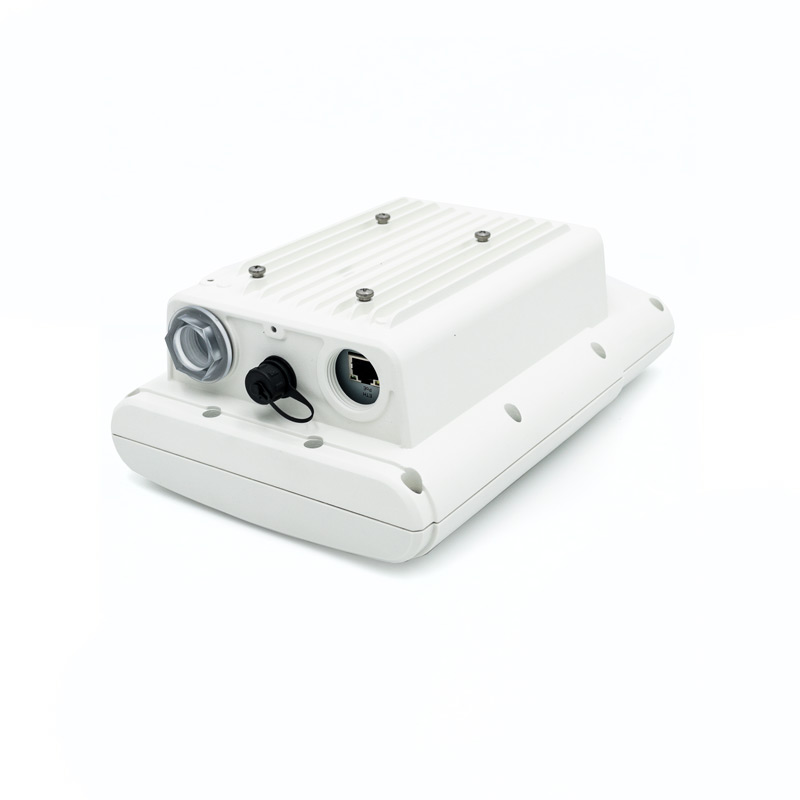

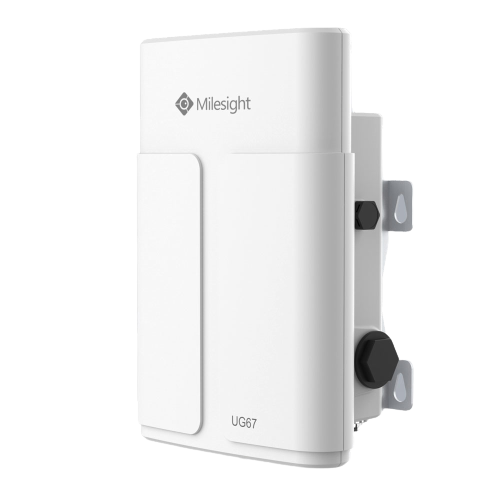

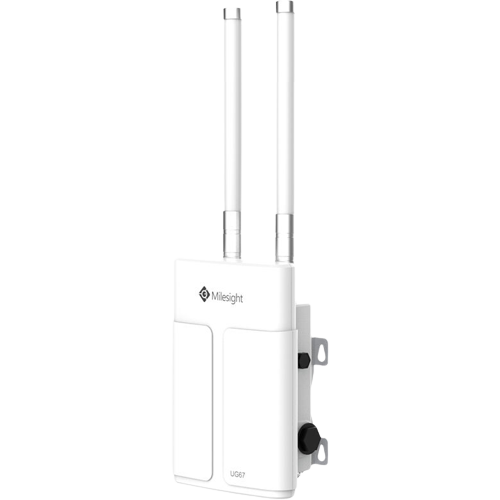

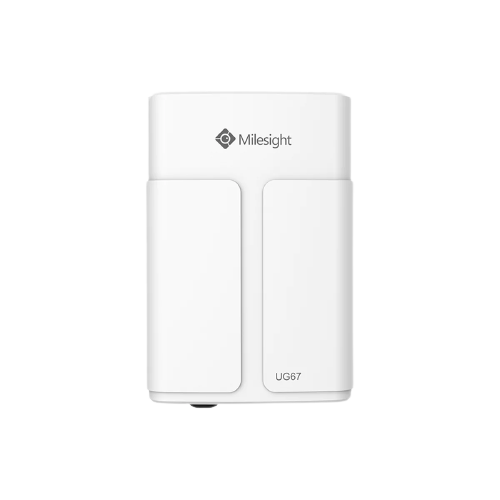

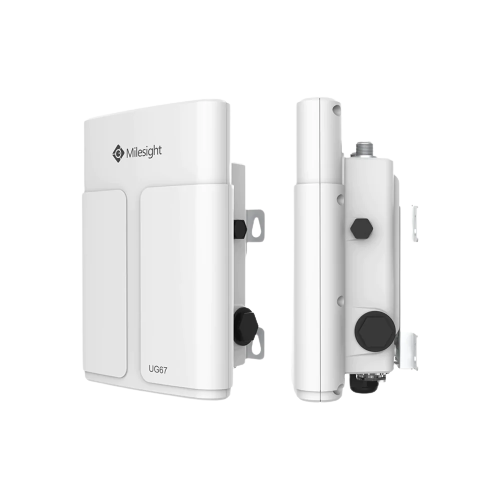

UG67 Robust Outdoor LoRaWAN Gateway

https://harotechs.com/web/image/product.template/22/image_1920?unique=309f33c
(0 review)

The UG67 is a rugged outdoor gateway from Milesight with SX1302 LoRa chip and powerful quad-core CPU. With its waterproof IP67 housing, this gateway is ideally suited for Smart Agriculture, Smart Metering, Smart Industry or Smart City projects.

US$ 650.00 650.0 USD US$ 650.00

US$ 650.00

Not Available For Sale

  • Brand
  • IoT Features

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Indoor LoRaWAN Gateway

Milesight UG67 Helium hotspot Miner is the big boy in Milesight’s Helium Gateway family. It is based on the well-established UG67 LoRaWAN gateway. Milesight UG67 Helium Hotspot is an industrial production grade with an IP67 enclosure, 4G backhaul, 2 antenna connectors, and is capable to work in a harsh environment. No more worries if your hotspot will sunburn or freezing outside.

Adopting the SX1302 LoRa chip and high-performance quad-core CPU, UG67 supports connections with more than 2000 nodes. UG67 has a line of sight up to 15 km and can cover about 2 km in an urbanized environment, which is ideally suited to smart offices, smart buildings, and many other indoor applications.

Features

  • CPU Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
    Memory 512 MB DDR4 RAM - Flash 8 GB eMMC
    Fully Integrated Internal Antenna (Optional: 1 × 50 Ω N-Female External Antenna Connector)
    Channels 8
    Frequency Band CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923
    Sensitivity -140dBm Sensitivity @292bps
    Protocol V1.0 Class A/Class C and V1.0.2 Class A/Class C
    Port 1 × RJ45 (PoE PD support)
    Physical Layer 10/100/1000 Base-T (IEEE 802.3)
    Standards IEEE 802.11 b/g/n
    Network Protocols PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
    VPN Tunnel OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
    Access Authentication CHAP/PAP/MS-CHAP/MS-CHAPV2
    Firewall ACL/DMZ/Port Mapping/MAC Binding/URL Filter
    Management Web, CLI, SMS, On-demand dial up, DeviceHub, Milesight IoT Cloud
    Protection IP67

Specifications

IoT Features PSE+Wi-Fi or PSE+Wi-Fi+4G
Brand Milesight
