4G Cellular Modems with Global Bands

4G cellular modem USR-G786-G is launched in 2020 featuring with rugged design, high speed, lowlatency, compact size, high reliability and global bands.

US$ 123.00 123.0 USD US$ 123.00

US$ 123.00

This combination does not exist.

ADD TO CART BUY NOW

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

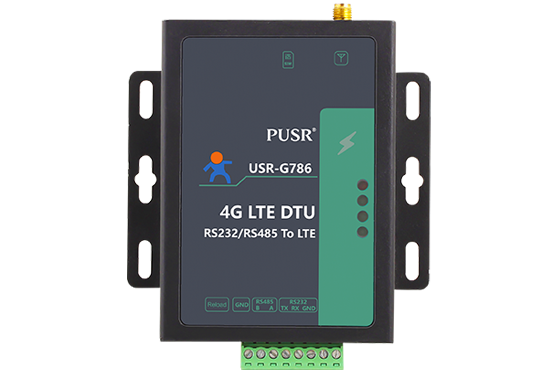

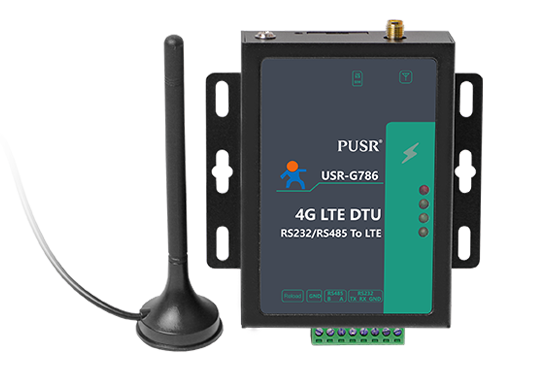

USR-G786

4G Cellular Modems with Global Bands

4G cellular modem USR-G786-G is launched in 2020 featuring with rugged design, high speed, lowlatency, compact size, high reliability and global bands

PUSR

As an industry-leading IIoT software/hardware solution provider, we concentrate on the R&D
production and sales of communication products.

USR-G786

USR-G786 can quickly upload the data collected by various sensors in an agricultural greenhouse to a remote server through LTE or GPRS network. This is convenient for the control center to monitor the environmental dynamics of
greenhouse in real-time and makes timely responses.

Provide data two-way transparent transmission between field serial devices and the central control server
Support 2 Socket connections, support TCP Client and UDP
Support custom heartbeat package and registration package Private protocols can be customized

Learn more

Features

High reliability, High speed, Low latency
Terminal block, RS232/485
Industrial Design, metal housing, IP30 protection
Provide data two-way transparent transmission between field serial devices and the central control server
HTTPD Client submit serial data to the designated server by HTTP (GET/POST) method

els	USR-DR504-G	USR-G786-G	USR-DR504-EUX	USR-G786-EUX
LTE Category	LTE Cat.4	LTE Cat.4	LTE Cat.4	LTE Cat.4
Frequency Bands	LTE FDD	B1/B2/B3/B4/B5/B7/B8/B12/ B13/B18/B19/B20/B25/B26/B28	B1/B2/B3/B4/B5/B7/B8/B12/ B13/B18/B19/B20/B25/B26/B28	B1/B3/B7/B8/B20/B28A	B1/B3/B7/B8/B20/B28A
LTE TDD	B38/B39/B40/B41	B38/B39/B40/B41	B38/B40/B41	B38/B40/B41
WCDMA	B1/B2/B4/B5/B6/B8/B19	B1/B2/B4/B5/B6/B8/B19	B1/B8	B1/B8
GSM	B2/B3/B5/B8	B2/B3/B5/B8	B3/B8	B3/B8
Transmission Speed	LTE-FDD	150Mbps(DL)/50Mbps(UL)	150Mbps(DL)/50Mbps(UL)	150Mbps(DL)/50Mbps(UL)	150Mbps(DL)/50Mbps(UL)
LTE-TDD	130Mbps(DL)/30Mbps(UL)	130Mbps(DL)/30Mbps(UL)	130Mbps(DL)/30Mbps(UL)	130Mbps(DL)/30Mbps(UL)
DC-HSDPA	42Mbps (DL)	42Mbps (DL)	42Mbps (DL)	42Mbps (DL)
HSUPA	5.76Mbps (UL)	5.76Mbps (UL)	5.76Mbps (UL)	5.76Mbps (UL)
WCDMA	384Kbps(DL)/ 384Kbps(UL)	384Kbps(DL)/ 384Kbps(UL)	384Kbps(DL)/ 384Kbps(UL)	384Kbps(DL)/ 384Kbps(UL)
GSM(EDGE)	296Kbps (DL)/ 236.8Kbps (UL)	296Kbps (DL)/ 236.8Kbps (UL)	296Kbps (DL)/ 236.8Kbps (UL)	296Kbps (DL)/ 236.8Kbps (UL)
GSM (GPRS)	107Kbps (DL)/ 85.6Kbps (UL)	107Kbps (DL)/ 85.6Kbps (UL)	107Kbps (DL)/ 85.6Kbps (UL)	107Kbps (DL)/ 85.6Kbps (UL)
Serial Parameters	Interface Form	RS485(Terminal)*1	RS485(Termianl)1 RS232(Termianl)1	RS485(Terminal)*1	RS485(Termianl)1 RS232(Termianl)1
Data Bits	8	8	8	8
Stop Bits	1,2	1,2	1,2	1,2
Parity Bits	NONE,ODD,EVEN	NONE,ODD,EVEN	NONE,ODD,EVEN	NONE,ODD,EVEN
Baud Rate	2400～230400	2400～230400	2400～230400	2400～230400
Physical Interfaces	SIM/USIM card	1.8V/3V (Medium size SIM card)	1.8V/3V (Large SIM card)	1.8V/3V (Medium size SIM card)	1.8V/3V (Large SIM card)
Antenna	SMA Female	SMA Female	SMA Female	SMA Female
USB	USB 2.0	-	USB 2.0	-
Indicators	POWER,WORK,NET,LINK,RSSI	POWER,WORK,NET,LINK	POWER,WORK,NET,LINK,RSSI	POWER,WORK,NET,LINK
Reload	Button	Button	Button	Button
Reset	/	/	/	/
Hardware Characteristics	Input Voltage	9V～36V	9V～36V	9V～36V	9V～36V
Connector	Terminal	Terminal	Terminal	Terminal
Housing material	ABS Plastic	Metal	ABS Plastic	Metal
Dimensions(mm)	44.5×31.8×13.94 (LWH)	111.51×94×28 (LWH)	44.5×31.8×13.94 (LWH)	111.51×94×28 (LWH)
Operating temperature	-30℃～+75℃	-35℃～+75℃	-30℃～+75℃	-35℃～+75℃
Storage Temperature	-40℃～+85℃	-40℃～+90℃	-40℃～+85℃	-40℃～+90℃
Operating humidity	5%～95%	5%～95%	5%～95%	5%～95%
Storage humidity	5%～95%	5%～95%	5%～95%	5%～95%
Software	Protocol	TCP/UDP/DNS/HTTP/FTP	TCP/UDP/DNS/HTTP/FTP	TCP/UDP/DNS/HTTP/FTP	TCP/UDP/DNS/HTTP/FTP
Serial to network	2 sockets, default A	2 sockets, default A	2 sockets, default A	2 sockets, default A
SMS	PDU/TEXT	PDU/TEXT	PDU/TEXT	PDU/TEXT
Configuration	Serial,Net,SMS AT commands	Serial,Net,SMS AT commands	Serial,Net,SMS AT commands	Serial,Net,SMS AT commands
Cache	5 packets	5 packets	5 packets	5 packets
Packaging mechanism	Packaging time(ms)	100~60000,default100	100~60000,default100	100~60000,default100	100~60000,default100
Packaging length(byte)	100～1000,default 1000	100～1000,default 1000	100～1000,default 1000	100～1000,default 1000
Others	Tool	USR-Cat 4Configuration Utility	USR-Cat 4Configuration Utility	USR-Cat 4Configuration Utility	USR-Cat 4Configuration Utility
Certifications	CE,ROSH	CE,ROSH	CE,ROSH	CE,ROSH
