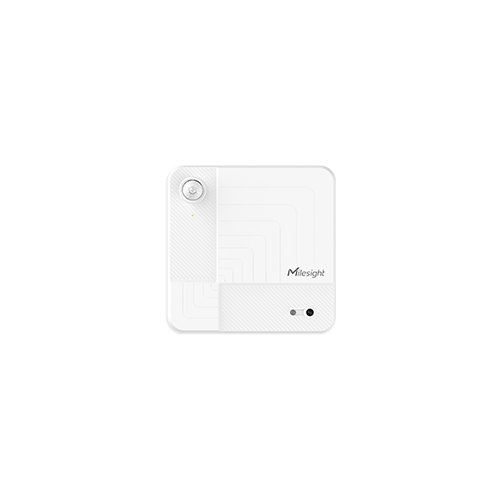

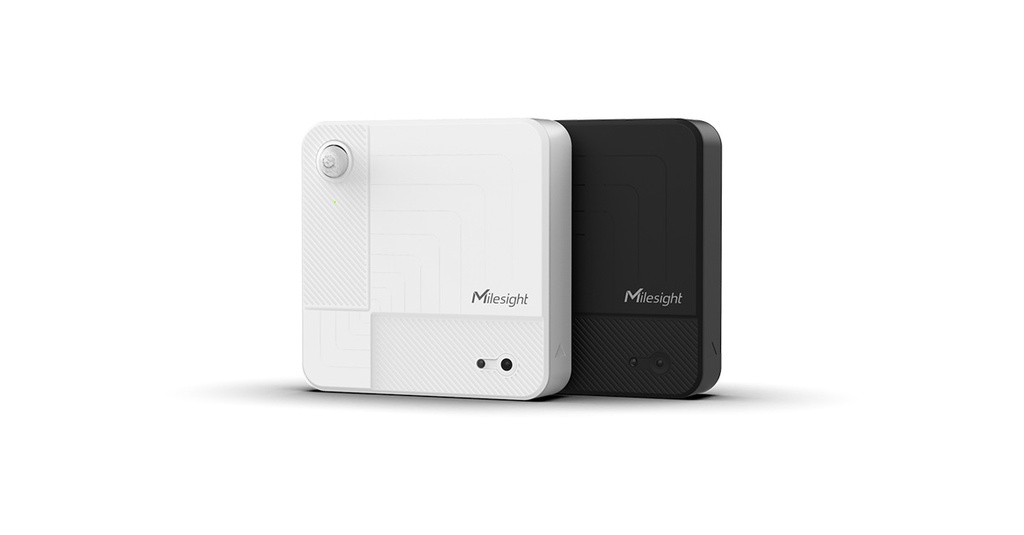

Wireless AI Occupancy Sensor

https://harotechs.com/web/image/product.template/429/image_1920?unique=497ffee
(0 review)

VS321 is a battery-powered AI sensor for detecting occupancy and monitoring environmental conditions. With D2D and LoRaWAN® support, it enables smart automation and remote management. Ideal for offices, meeting rooms, and campuses to enhance comfort, efficiency, and space utilization.

elderly care solutions.

US$ 150.00 150.0 USD US$ 150.00 VAT Excluded

US$ 150.00 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Wireless AI Occupancy Sensor

    ​

    VS321 is a battery-powered AI sensor for detecting occupancy and monitoring environmental conditions. With D2D and LoRaWAN® support, it enables smart automation and remote management. Ideal for offices, meeting rooms, and campuses to enhance comfort, efficiency, and space utilization.

    VS321 Feature



    • Wireless Battery Version (10+ Years of Life)
    • Multi Sensors Built-in(T&H, Light)
    • Up to 95% Occupancy Accuracy
    • Accurate People Counting & Desk Occupancy
    • 100% Anonymous Detection
    • Unique Milesight D2D Controller
    • VS321
    Measurement
    People Counting & Occupancy Detection
    Field of View129 ° Horizontal, 93 ° Vertical
    Installation Height2.4m ~ 4m
    Required illumination50 Lux
    PIR Measuring Angle115°
    PIR Detection AreaRadius: 4 m (15°C, 3m Installation Height)
    Recognition RateUp to 95%1
    Temperature
    Operating PrincipleDigital CMOSens® technology (MEMS)
    Measuring Range-40 °C~125 °C
    Accuracy±1 °C
    Resolution0.1 °C
    Humidity
    Operating PrincipleDigital CMOSens® technology (MEMS)
    Measuring Range0~100 %RH
    Accuracy± 2.5 %RH
    Resolution0.5 %RH
    Light
    Operating PrinciplePhotodiode
    StatusBright/Dim
    Transmission
    ProtocolLoRaWAN®, Milesight D2D
    AntennaInternal Antenna
    FrequencyCN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
    Tx Power16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz)
    Sensitivity-137 dBm @300bps
    Work ModeOTAA/ABP Class A
    Others
    USB1 × Type-C Port for Power Supply
    LED Indicator1 × Status Indicator
    Button1 × Multi-function Button
    Software
    ConfigurationBluetooth
    Advanced FeatureMilesight D2D Controller, Data Storage (2045 entries), Data Retransmission, Data Retrievability, Threshold Alarm, Hibernate Mode
    Physical Characteristics
    Power Supply1) 4 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
    2) DC 5V/ 1A by Type-C Port
    Battery Life2 (Working 8h per day, 5-min Detection Interval and Report Interval, 25 °C)Around 11.3 Years (SF7, EU868)
    Around 10.8 Years (SF7, US915)
    Around 7.5 Years (SF10, EU868 & US915)
    Operating Temperature0°C ~ +30°C
    Relative Humidity0 ~ 95% (Non-condensing)
    Ingress ProtectionIP30
    Housing&ColorPlastic (UL94, V2) & White/Black (Optional)
    Weight145g (Batteries excluded)
    Dimension100 × 100 × 26 mm (3.94 × 3.94 × 1.02 in)
    InstallationCeiling Mounting (Screws or Adhesive Backed Fixed)
    Approvals(Planned)
    RegulatoryCE, FCC
    EnvironmentalRoHS


    VS321 Datasheet

    VS321 User Guide

    Firmware & SDK downloand
