Radar Fall Detection Sensor

https://harotechs.com/web/image/product.template/387/image_1920?unique=3a9558c
(0 review)

VS373 ensures stable and contactless monitoring, instantly detecting falls and other abnormal movements when the individual is alone.This contributes to achieving smart healthcare and developing comprehensive elderly care solutions.

US$ 298.00 298.0 USD US$ 298.00 VAT Excluded

US$ 298.00 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Reliable Fall Detection sensor

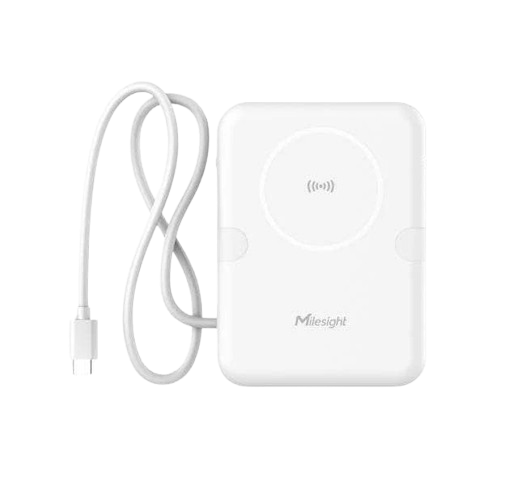

    The VS373 Fall Detection Sensor ensures stable and contactless monitoring, instantly detecting falls and other abnormal movements when the individual is alone. Powered by advanced fall detection technology, it contributes to achieving smart healthcare and developing comprehensive elderly care solutions.

    Features

    •  High Fall Detection Accuracy of Up to 99%
    • 24/7 Monitoring Even in Dark and Humid Environments
    • 100% Privacy Protection
    • Contactless Fall Detection
    • IP65 Waterproof and Dustproof
    • Support DO Interface
    • Detect Fall, Occupancy, Bed Presence, Movement
    • Instant Alerts For Immediate Intervention
    • Software Compatibility To Unlock Data Potential
    • VS373
    Fall Detection3
    TechnologyMillimeter Wave Radar
    Recognition Rate2Up to 99% (Single Person)
    False Alarm Rate2Down to 1% (Default fall configuration parameters)
    Installation Height2.3m～3m
    Advanced FeatureMilesight D2D Controller & Agent, Occupancy Detection, In-Bed Detection, Motionless Detection, Data Storage (1, 000 entries), Data Transmission, Data Retrievability
    Radar
    Transceiver24 Transmitters & 22 Receivers
    Frequency60GHz
    Tx PowerMax. 20 dBm
    FoV70 ° Horizontal, 140 ° Vertical
    Detection Range4m*5m (Within the installation height)
    Wireless Transmission
    ProtocolLoRaWAN®, Milesight D2D
    AntennaInternal Antenna
    FrequencyCN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
    Tx Power16 dBm (868 MHz)/22 dBm (915MHz)/19 dBm (470MHz)
    Sensitivity-137dBm @300bps
    ModeOTAA/ABP Class C
    Other Interfaces
    Wi-FiIEEE 802.11 b/g/n, 2.4GHz (AP Mode for Configuration)
    DI/DO1 × DO (60V/1A)
    Button1 × Reset Button,1 × Multi-function Button
    LED Indicators1 × Multi-color LED Indicator
    Buzzer1 × Buzzer
    Power Input1 × Type-C Cable (2m)
    Physical Characteristics
    Power SupplyDC 5V/ 3A by Type-C Cable
    Power ConsumptionMax: 9.5W
    Operating Temperature0°C ~ 50°C
    Relative Humidity0 ~ 95% (non-condensing)
    Dimension114 × 84 × 15 mm (4.49 × 3.3 × 0.59 in)
    Weight214.5g
    Ingress ProtectionIP65
    Housing&ColorABS (UL94 V1), White

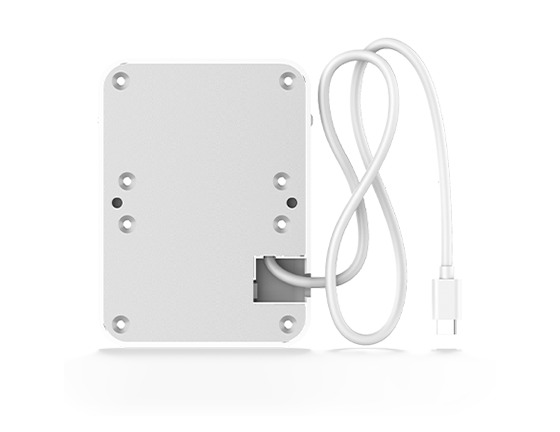

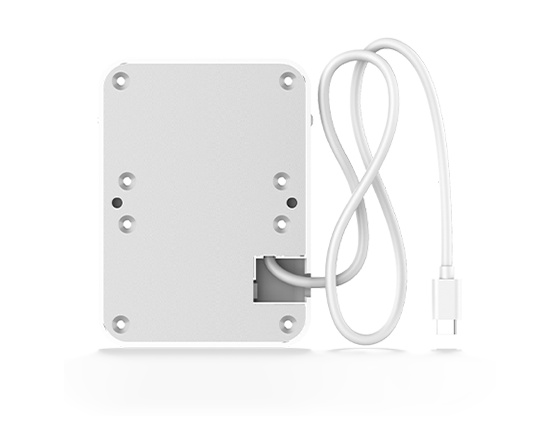

    InstallationCeiling Mounting


    VS373 Datasheet

    VS373 User Guide

    Firmware & SDK Download
