WisGate Connect Base Kit

https://harotechs.com/web/image/product.template/70/image_1920?unique=7580286
(0 review)

RAK7391 WisGate Connect is a Raspberry Pi CM4-based gateway product meant to support different radio and WisBlock modules. It has several interfaces to meet the needs of different developers (HDMI, Ethernet, USB, mPCIe, CSI, DSI, M.2, WisBlock, PoE, Raspberry Pi HAT).

US$ 149.00 149.0 USD US$ 149.00

US$ 149.00

Not Available For Sale

  • Brand
  • Frequency Band
  • Computer Module
  • LoRaWAN Module
  • Enclosure

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

LoRaWAN WisGate  Connct Base Kit

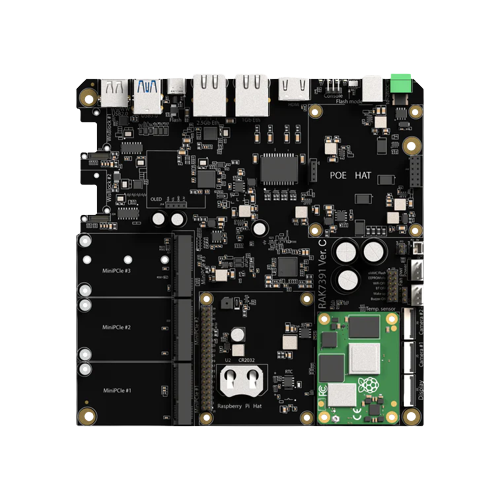

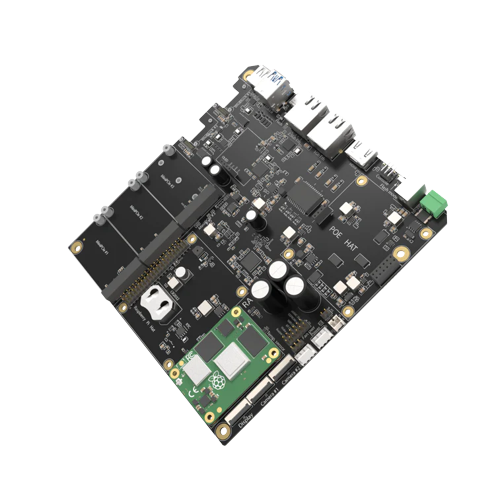

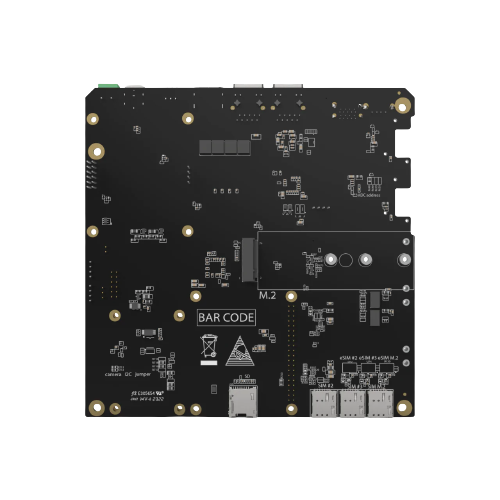

RAK7391 WisGate Connect is a Raspberry Pi CM4-based gateway product meant to support different radio and WisBlock modules. It has several interfaces to meet the needs of different developers (HDMI, Ethernet, USB, mPCIe, CSI, DSI, M.2, WisBlock, PoE, Raspberry Pi HAT). Of course, it can also be used as a basic LoRaWAN gateway product supporting up to 4 separate modules (you can have a 16-channel sub GHz LoRaWAN gateways plus a 2.4 GHz LoRaWAN gateway in the same device). It has flexible power supply modes such as DC terminal, Phoenix terminal, and POE (optional). The RAK7391 provides a fan interface to dissipate heat for the CPU that you can control based on the CPU temperature. It can monitor the power supply. In the event of a power failure, the ultracapacitors can provide power to the system, so that the system can send a notification or easily survive micro-cuts in the power supply.

Features

  • Accepts the complete range of CM4 modules
  • 2x WisBlock IO connectors
  • 3x mPCIe slots
  • 1x M.2 B-Key interface
  • Flexible power supply modes such as DC terminal, Phoenix terminal and POE (optional)
  • HDMI 2.0 connector
  • 1 Gb Ethernet with PoE support (optional)
  • 2.5 Gb Ethernet
  • 1x USB2.0 + 2x USB3.0
  • Type-C USB socket for updating the CM4
  • Micro SD Card socket for CM4 Lite modules
  • Standard fan connector, compatible with 12 V and 5 V fans (jumper cap configuration)
  • Output power connector (+5 V, +12 V with PoE)
  • MIPI DSI display FPC connector (22 pin 0.5 mm pitch cable)
  • 2x MIPI CSI-2 camera FPC connectors (22 pin 0.5 mm pitch cable)
  • Raspberry Pi HAT connector
  • PoE support via an optional module
  • Debug UART port
  • RTC with battery socket and ability to wake up CM4
  • Configuration jumpers (Wi-Fi and BLE enabling/disabling, EEPROM write enable, Buzzer enabling)



Package Inclusion
    • RAK7391 CM4 carrier board
    • Set of jumpers
    • Phoenix male connector
    • 12V2A power supply
    • Set of standoffs and screws to protect the board
    • Set of screws for the MiniPCIe, M.2 and WisBlock slots

    Optional:

    • Raspberry Pi Compute Module 4 (CM4102016, CM4104032 or CM4108032)
    • LoRa Concentrator (RAK5146-USB version for your region of choice)
    • 4G, WiFi6 or WiFi HaLow modules
  •

Rak7391 Datasheet

Rak7381 Start User Guide



Separate email addresses with a comma.
Submit


Specifications

Computer Module With compute module or 2Gb RAM +16Gb eMMC + WiFi or 4Gb RAM + 32Gb eMMC + WiFi or 8Gb RAM + 32Gb eMMC + WiFi
LoRaWAN Module None or RAK5146 LBT GPS USB
Enclosure None or Aluminum Desktop Enclosure or Aluminum Desktop Enclosure(include 24W PoE Module) or Sheet metal Desktop Enclosure or Sheet metal Desktop Enclosure(include 24W PoE Module) or Outdoor Enclosure include 24W PoE Module without Antenna or Outdoor Enclosure include 24W PoE Module 900MHz Antenna
Brand Rakwireless
Frequency Band AS923
